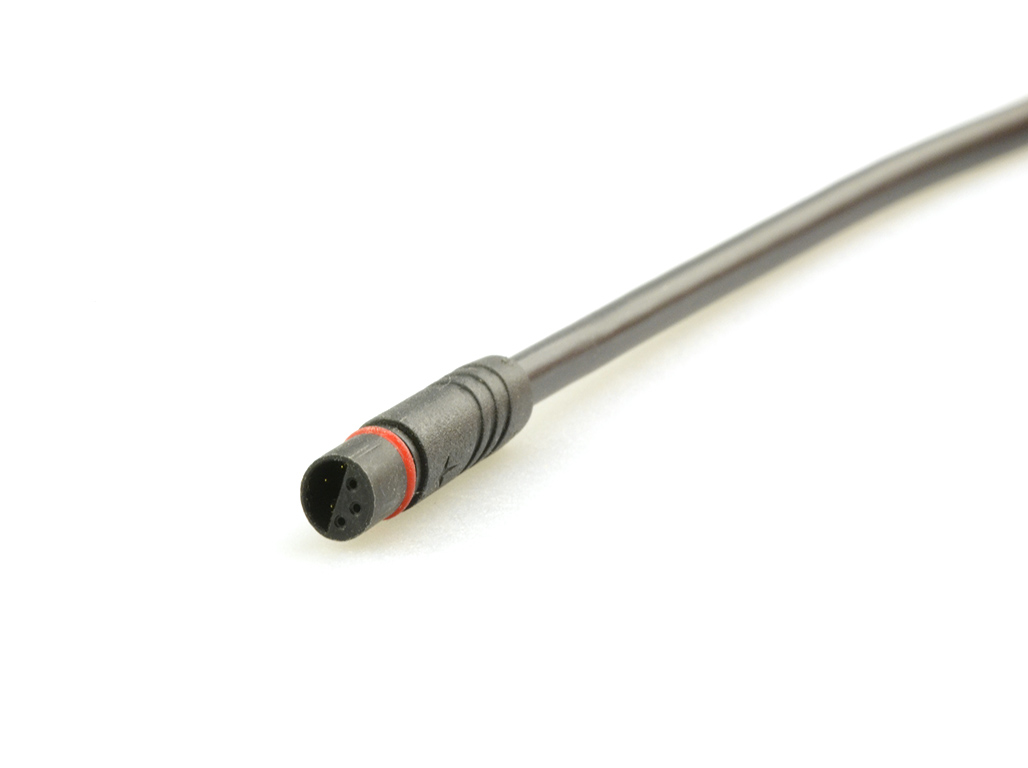

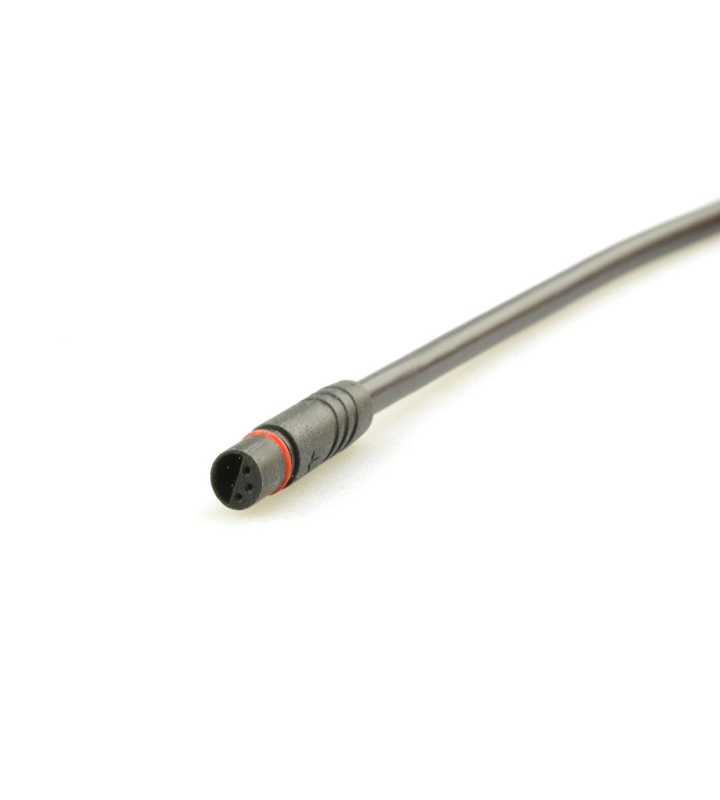

Micro Q female plug connector
Z606QM P 00 GV 1000
Specifications
General Characteristics
|
Number of contacts |
6
|
|
Connector shape |
Plug
|
|
Gender |
Female
|
|
Color |
Black
|
|
Upper temperature |
80 °C
|
|
Lower temperature |
-25 °C
|
|
IP Protection |
IP67
|
|
Mating cycles |
50 Times
|
|

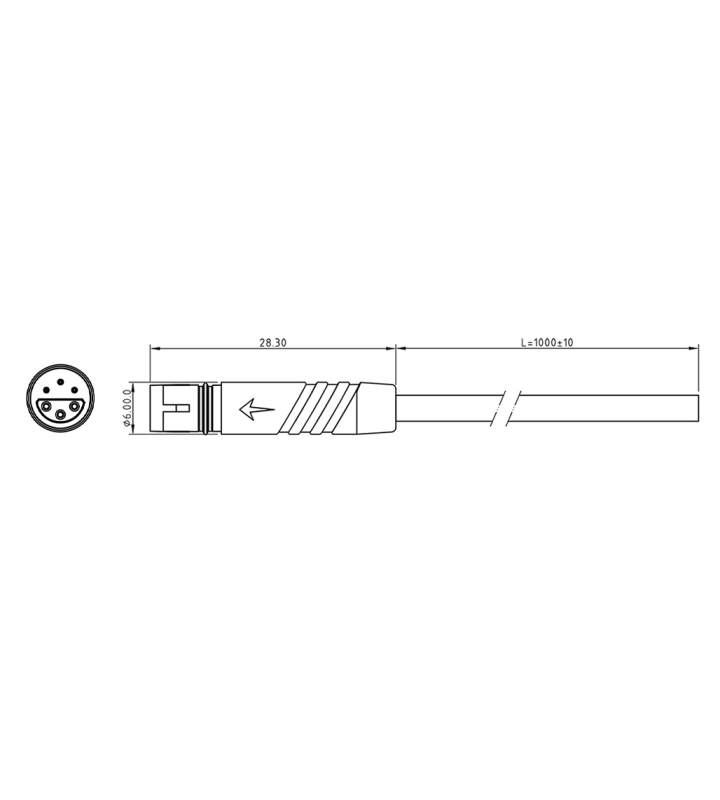

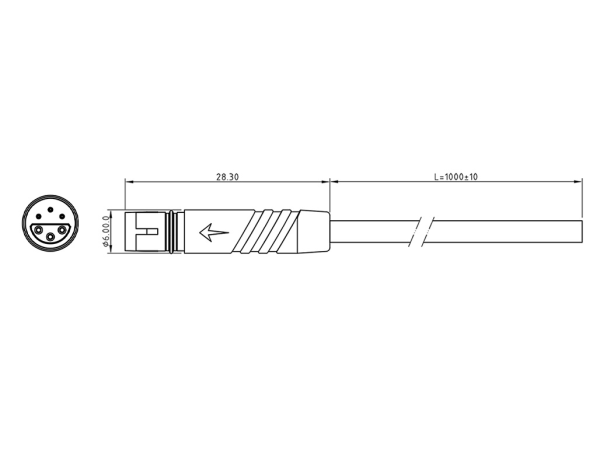

Connector diameter |
6 mm
|
|
Fitting length |
50 mm
|
|
Cable Length |
1000 mm
|
|
Cable diameter |
2.8 mm
|
|
Wire section |
6 x 0,08 mm²
|
|
Remark |
Other cable length/type on request
|
Electrical Parameters
|
Rated current |
2 A
|
|
Rated voltage |
48 V AC / 60 V DC
|
|
Max. insulation resistance |
≥20 MΩ
|
|
Max. contact resistance |
≤10 mΩ
|
Material
|
Material jacket |
PVC
|
|
Insulation wire |
FEP
|
|
Material of contact |
Copper Alloy
|
|
Contact plating |
Gold over Nickel
|
