Wide range of M12 up to M40 connectors
HUMMEL offers one of the most comprehensive connector portfolios on the market:
- M12, M16, M23 and M40 circular connectors
- Available for signal, data, power and hybrid applications
- In stainless steel (INOX) or overmoulded versions with various coding options
- Variants for crimp, solder and screw terminations
- Modular systems for customized configurations
This versatility makes HUMMEL an attractive choice for OEMs looking for one brand to cover multiple applications.
Unique wire crimping technology
HUMMEL’s wire crimping technology creates a solder-free, mechanically stable connection between the wire and the contact.
By crimping the wire 360° around, it forms a homogeneous, vibration-resistant connection with low contact resistance.
The result: consistent performance and long service life, even under high mating cycles in demanding industrial environments.
TWILOCK – fast, safe and reliable locking
The TWILOCK system is HUMMEL’s proprietary bayonet locking mechanism for M16 and M23 connectors.
Instead of a traditional screw connection, it uses a click-and-turn twist-lock that securely fastens the connector in just a quarter turn.
The system provides full EMC protection, is vibration-resistant, and guarantees an IP67/IP69K protection rating – making it ideal for industrial automation and drive technology.
The main advantage: up to 75% faster installation and a durable, vibration-proof connection that ensures maximum operational reliability.
HUMMEL INOX and moulded connectors
In addition to the standard product range, HUMMEL also offers special versions such as stainless-steel connectors and overmoulded connectors. These solutions meet the specific requirements of demanding industries (e.g. food processing) or provide customers with a ready-to-use connector and cable assembly — without any tooling costs.
Stainless-steel connectors are available in M16 and M23 sizes.
Overmoulded connectors are offered from M8 to M40 and are manufactured entirely according to customer specifications.

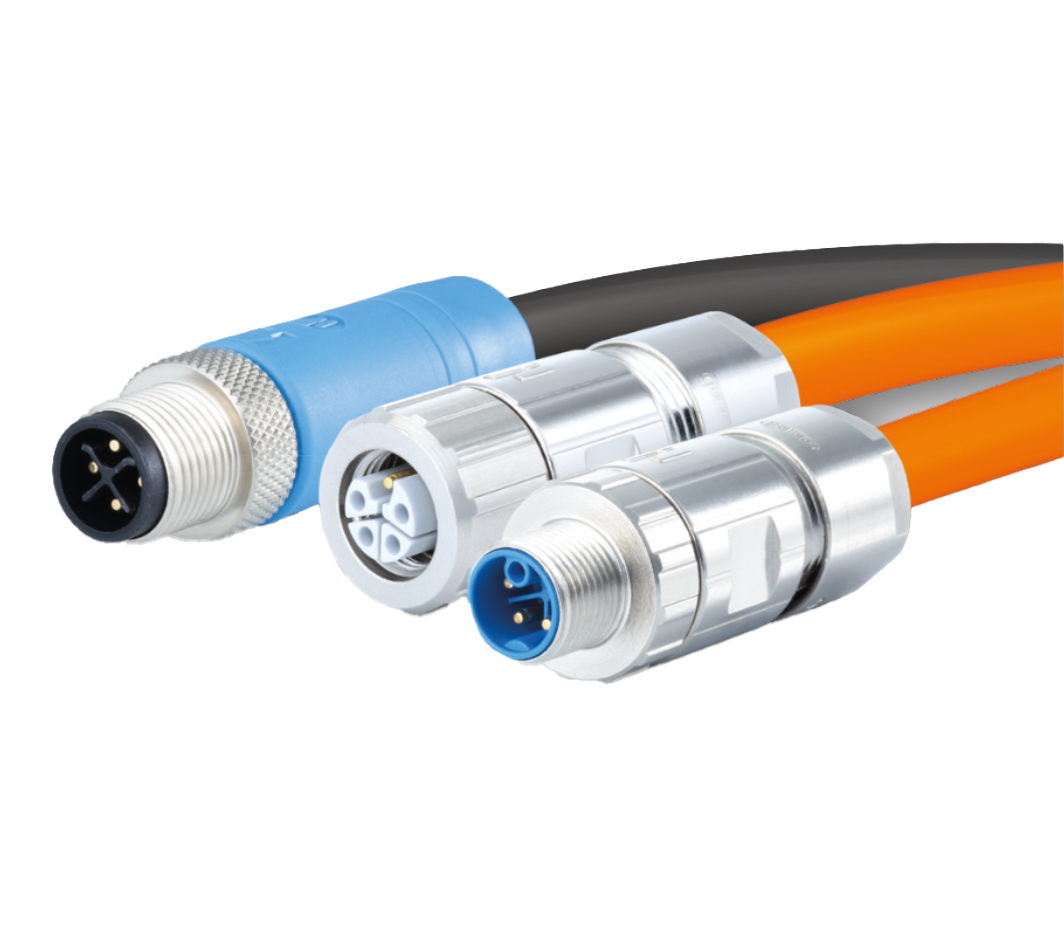

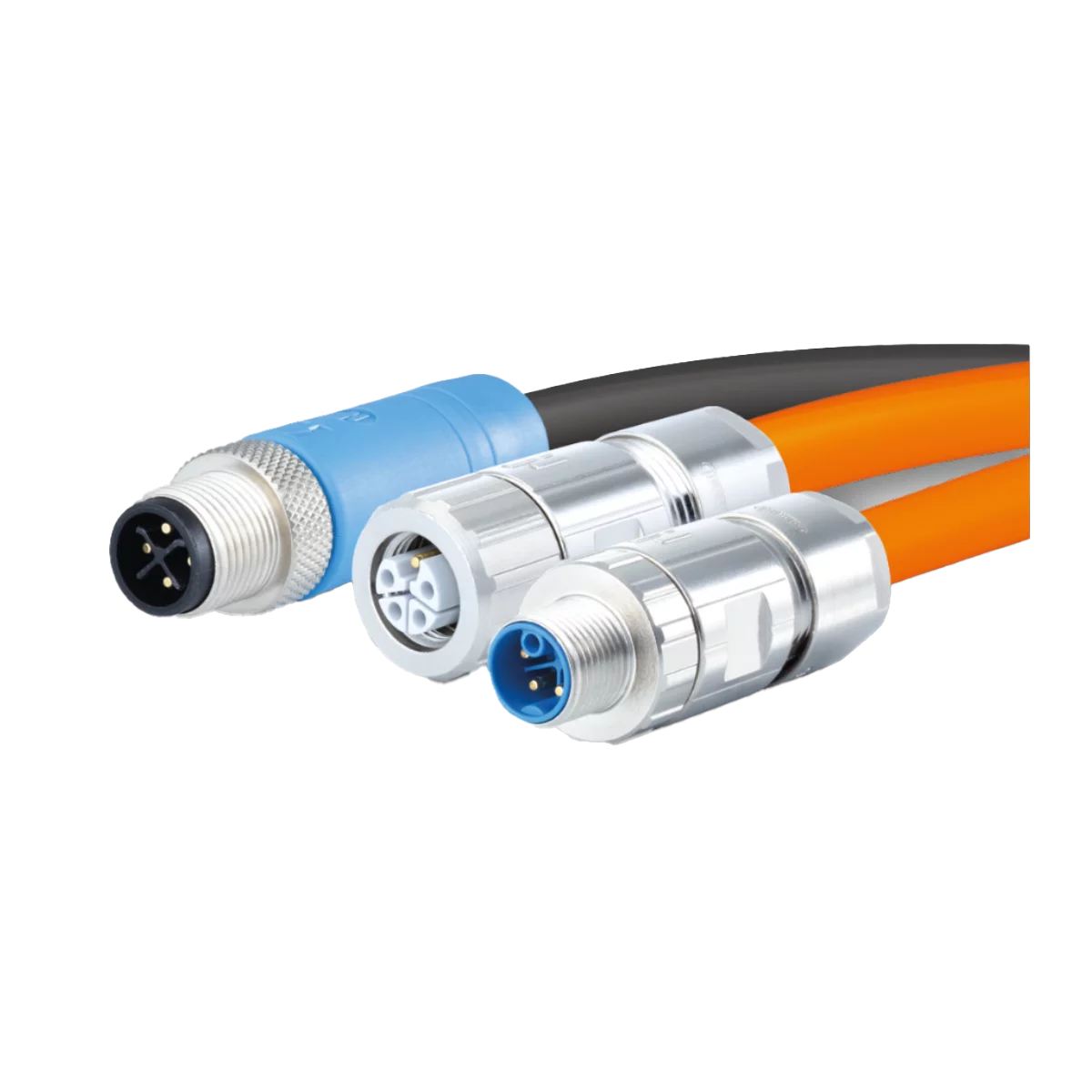

HUMMEL M12 Power Connectors
High-performance power in a compact M12 design
The HUMMEL M12 power series sets a new benchmark in industrial connectivity by delivering up to 16 A at 630 V in a remarkably small connector format. With multiple variants — including overmoulded, field-attachable, right-angle, and stainless-steel versions — this M12 power portfolio covers a wide range of industrial automation, machinery, robotics and LED lighting applications.
Available in K, L, S and T coding, all connectors feature solid EMC shielding, support cable diameters up to 11 mm and meet IP67 and IP69K protection levels. HUMMEL’s modular panel-mount offering (front or rear, with or without flange) provides maximum flexibility in designing the ideal power connection for any application.

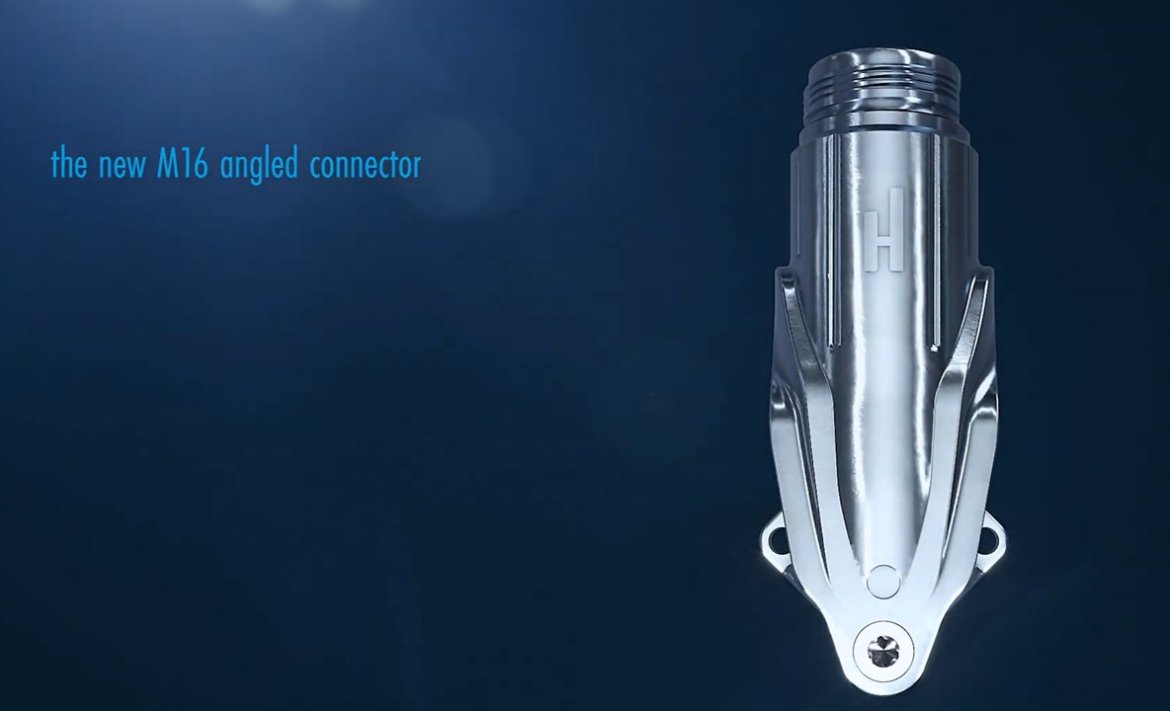

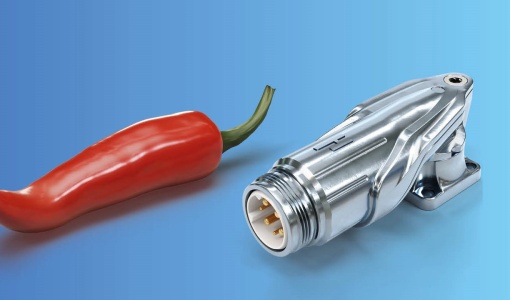

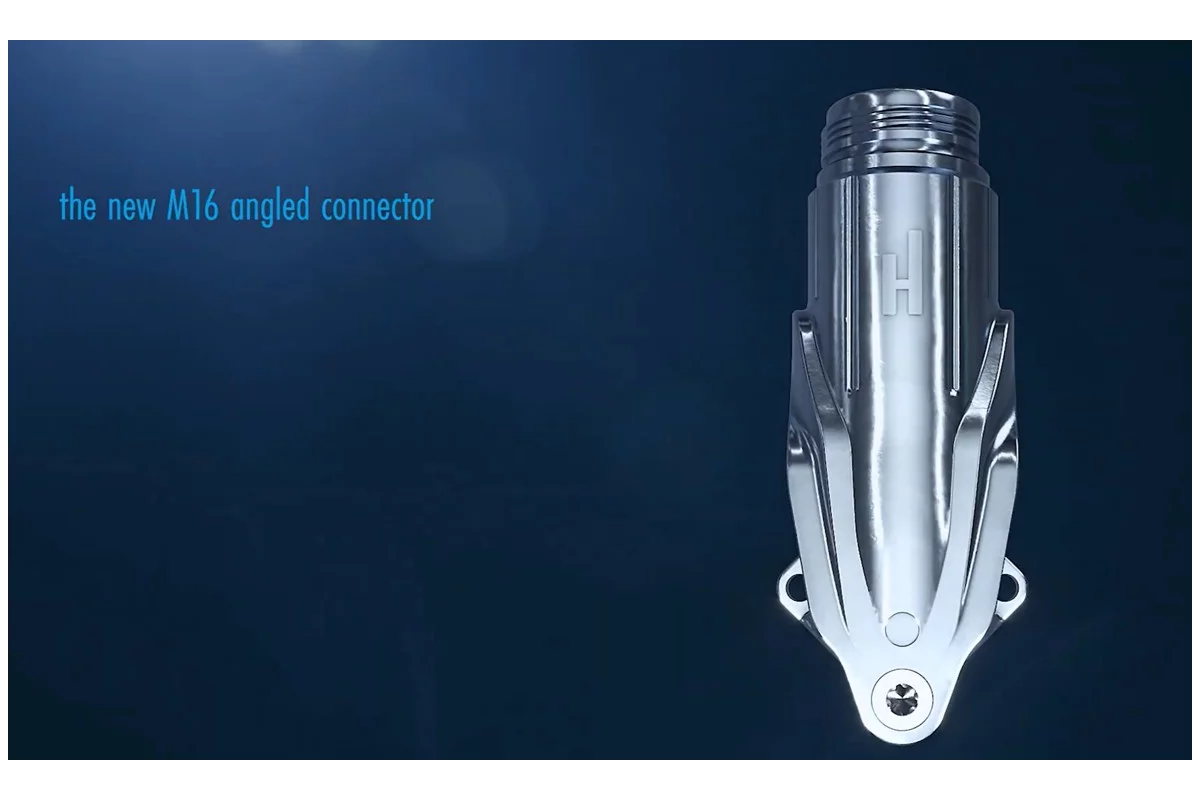

Hummel launches the world smallest M16 right-angle connector
Small in size. Giant in Power.
The new M16 angle connector from HUMMEL proves that high performance does not require a lot of space. As the world's smallest M16 angle connector with a height of only 22 mm, it delivers maximum power in a minimum of space – setting new standards in drive and automation technology.
Despite its compact form, it delivers performance values on M23 level, impresses with combined power and signal transmission, and is particularly flexible thanks to its 315° positioning capability. Thanks to the Twilock quick-locking mechanism, installation is quick and secure – perfect for modern motor designs or sensor technology in robotics, AGVs, and mechanical engineering.
Discover this mini but mightly Hummel M16 connector

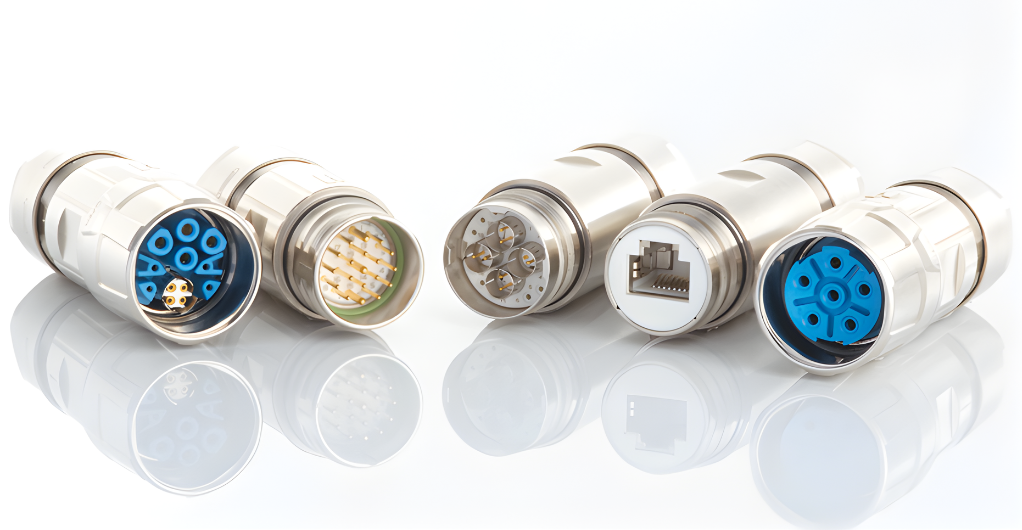

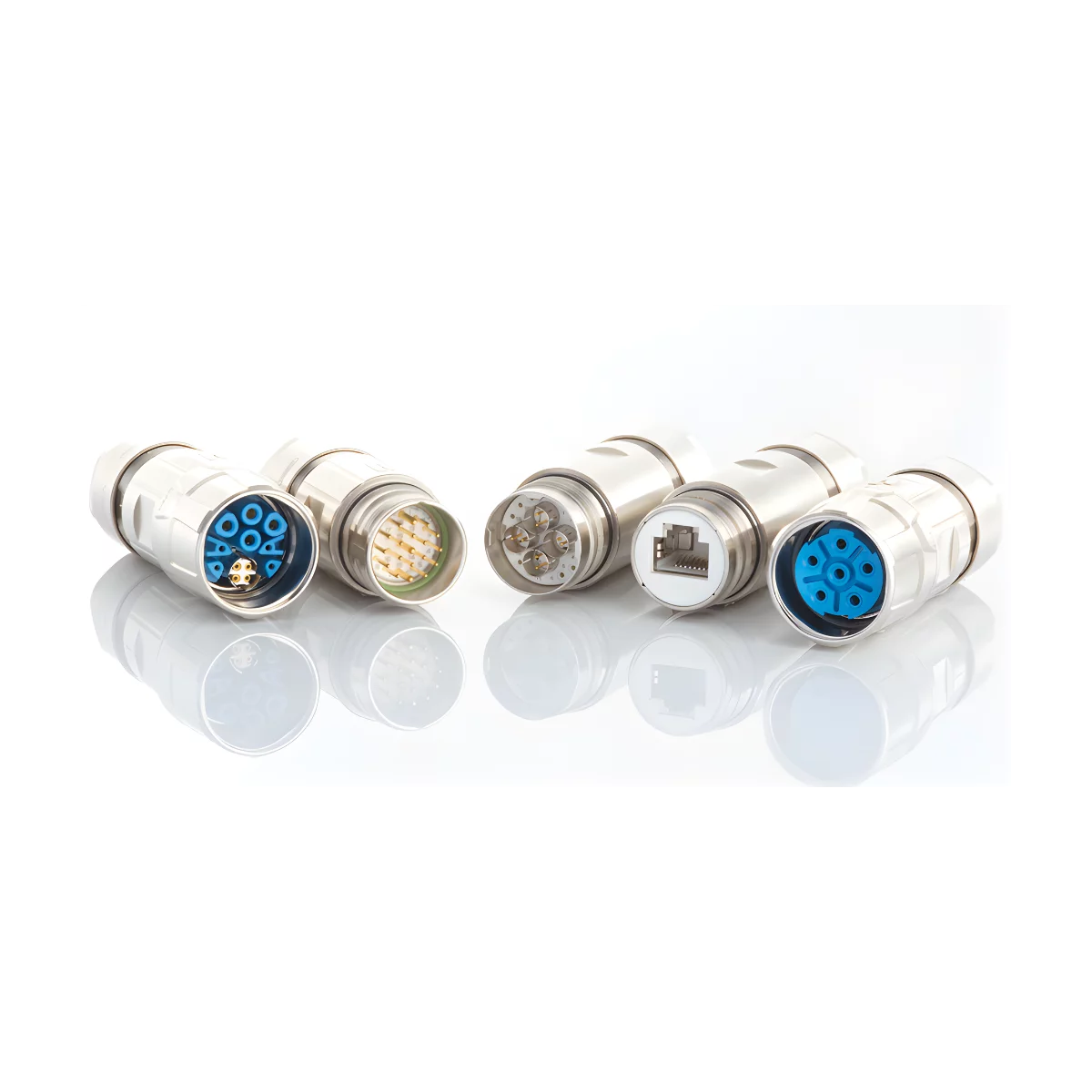

HUMMEL M23 Connectors
Flexible, robust and modular by design
Whether for signal, power, Industrial Ethernet or hybrid applications, the HUMMEL M23 connectors provide the right solution for every requirement.
Thanks to their modular concept, housings, inserts and contacts can be freely combined – offering engineers maximum flexibility and a wide range of configurations.
When it comes to locking systems, HUMMEL connectors offer multiple options.
The M23 circular connectors are available with the classic screw locking, the TWILOCK quick-release mechanism, and the TWILOCK-S version, which is fully compatible with the Speedtec locking system.
All versions are UL, CSA and VDE approved, meeting the highest standards of quality, reliability and safety for demanding industrial environments.

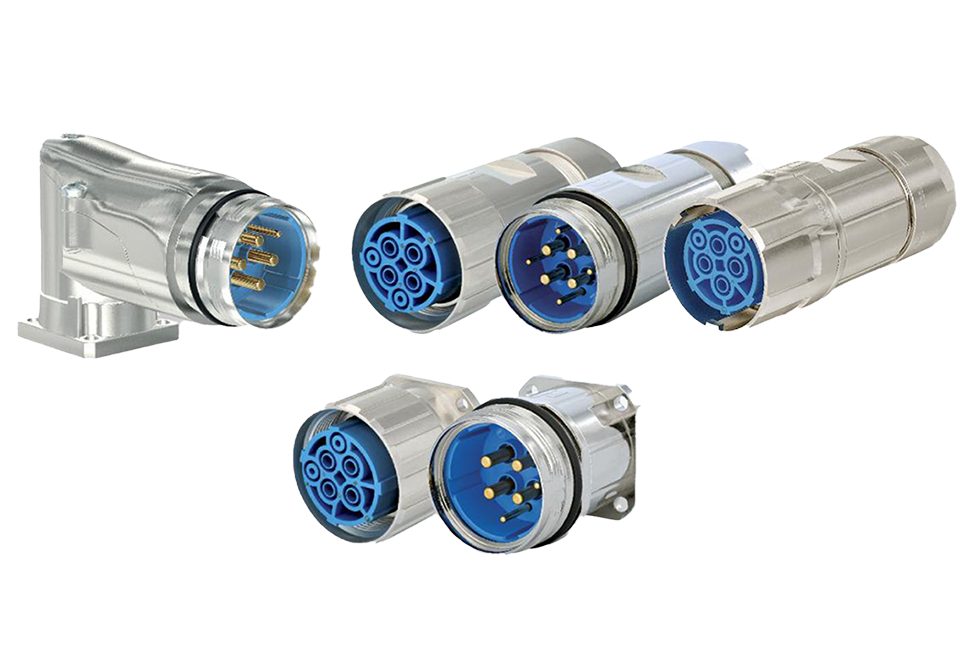

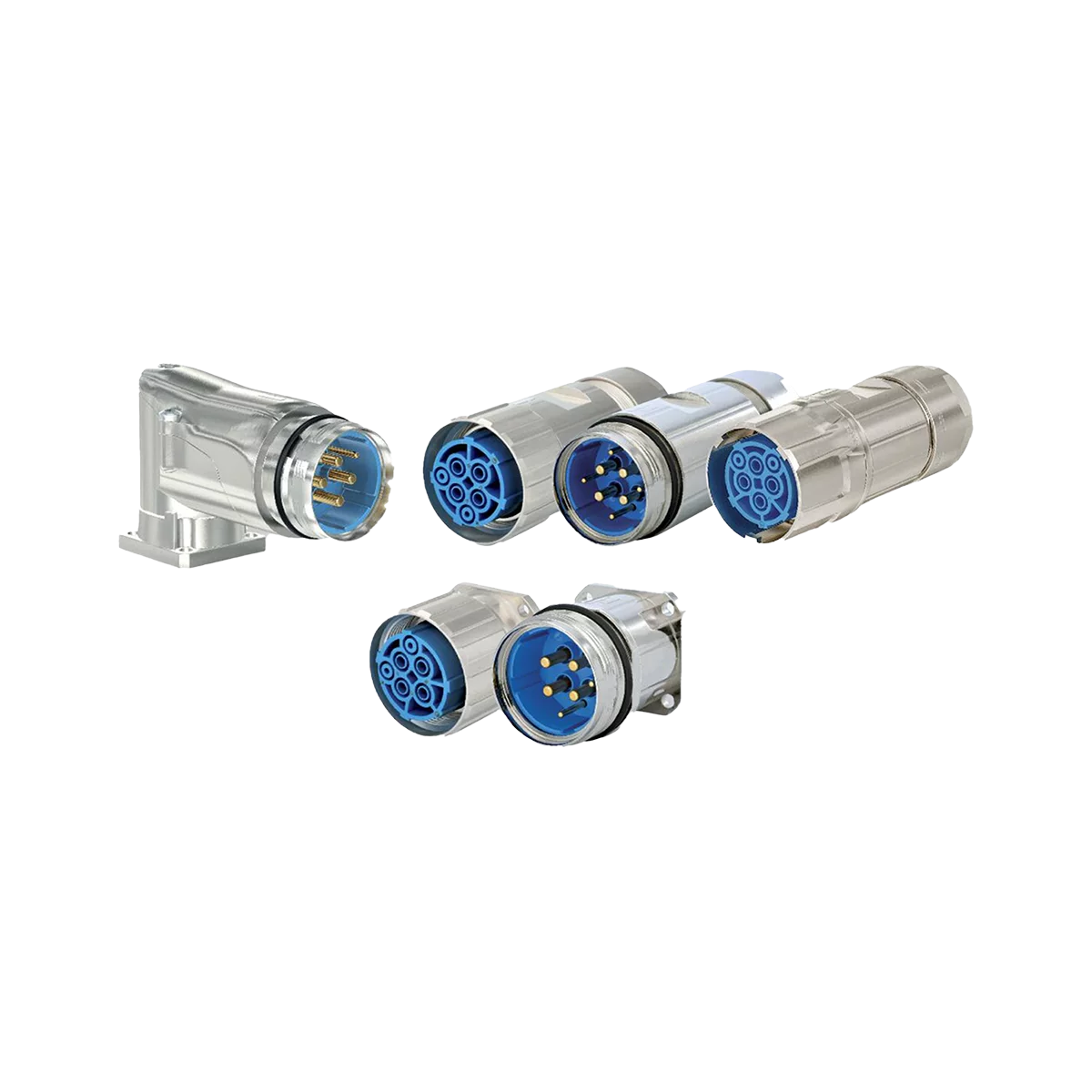

HUMMEL M40 connectors
maximum power for heavy industrial applications
HUMMEL M40 connectors are designed for applications that demand high power, maximum reliability, and a robust mechanical design. With their larger form factor and solid metal housing, they easily accommodate cables with larger cross-sections and high current loads. This makes the M40 series an excellent choice for drive technology, motors, industrial machinery, pumping systems, and other demanding industrial environments.
The connectors also offer IP67/IP69K protection and outstanding EMC performance.
Compatible with Speedtec – TWILOCK-S quick lock
In addition to the conventional screw-lock version, the M40 series is also available with TWILOCK-S, HUMMEL’s quick-lock system that is fully 1-to-1 compatible with the Speedtec locking mechanism (Igus and Intercontec). With just a short twist, the connector locks securely into place. Like TWILOCK, TWILOCK-S provides:
- Vibration resistance
- IP67/IP69K protection
- Fast and safe installation
The M40 series delivers exceptional power, reliability and flexibility in one rugged connector solution.

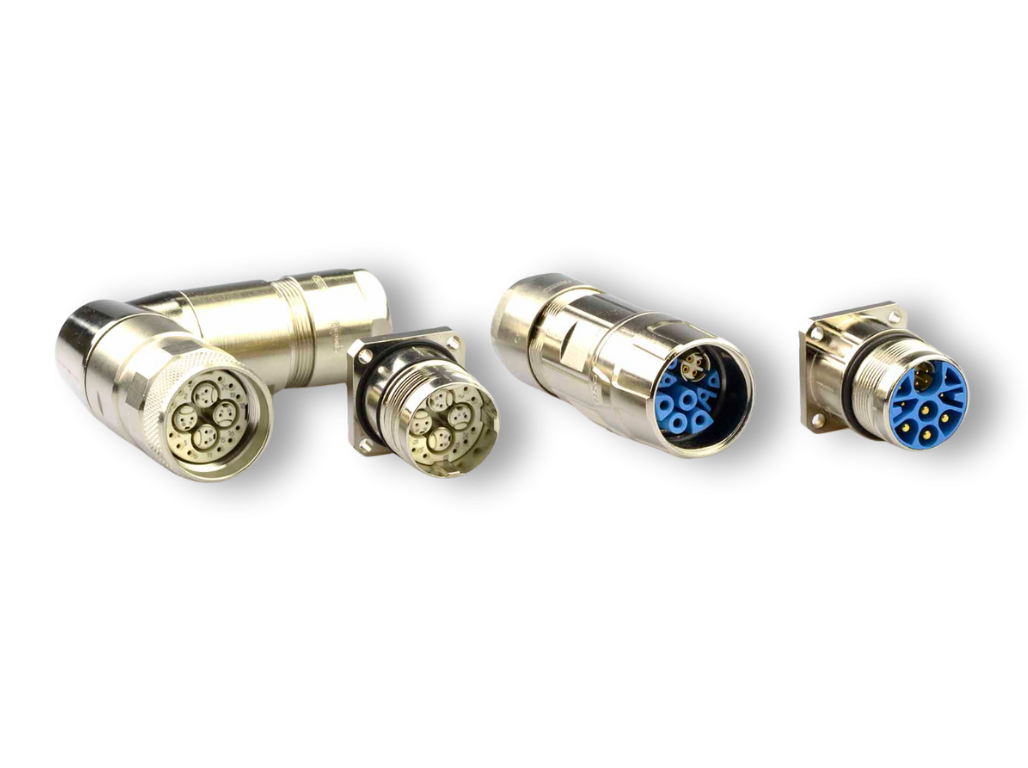

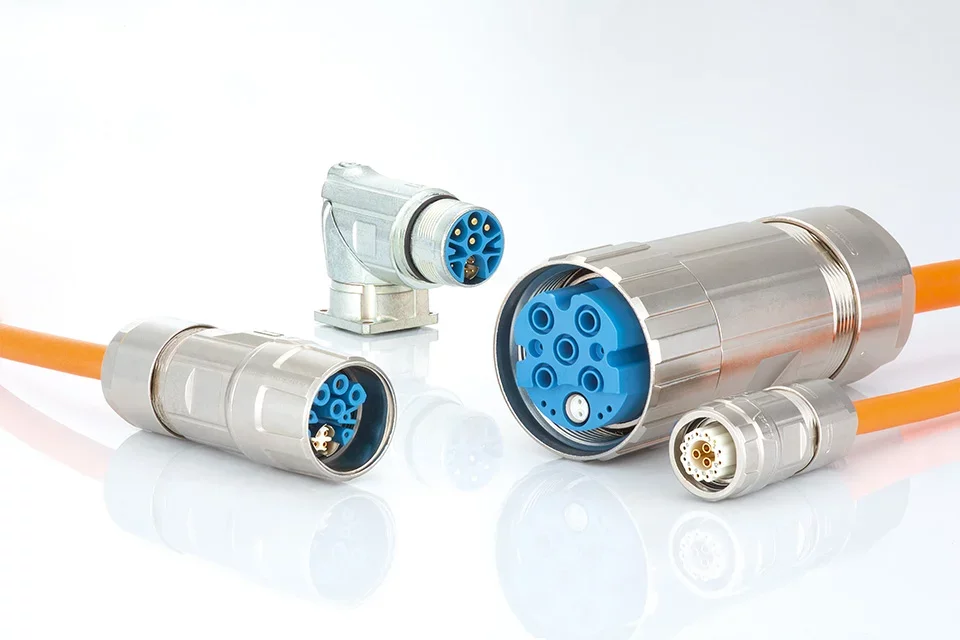

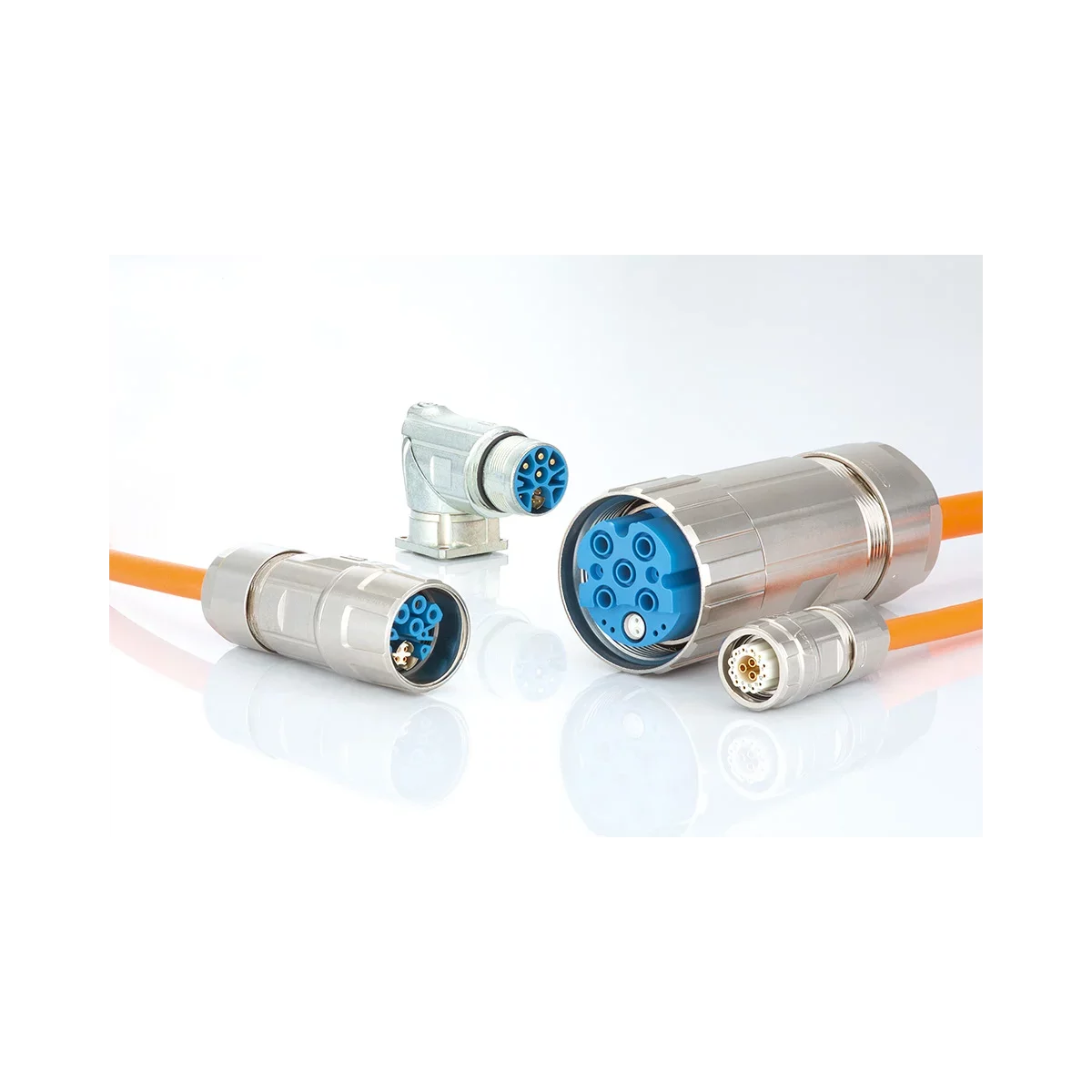

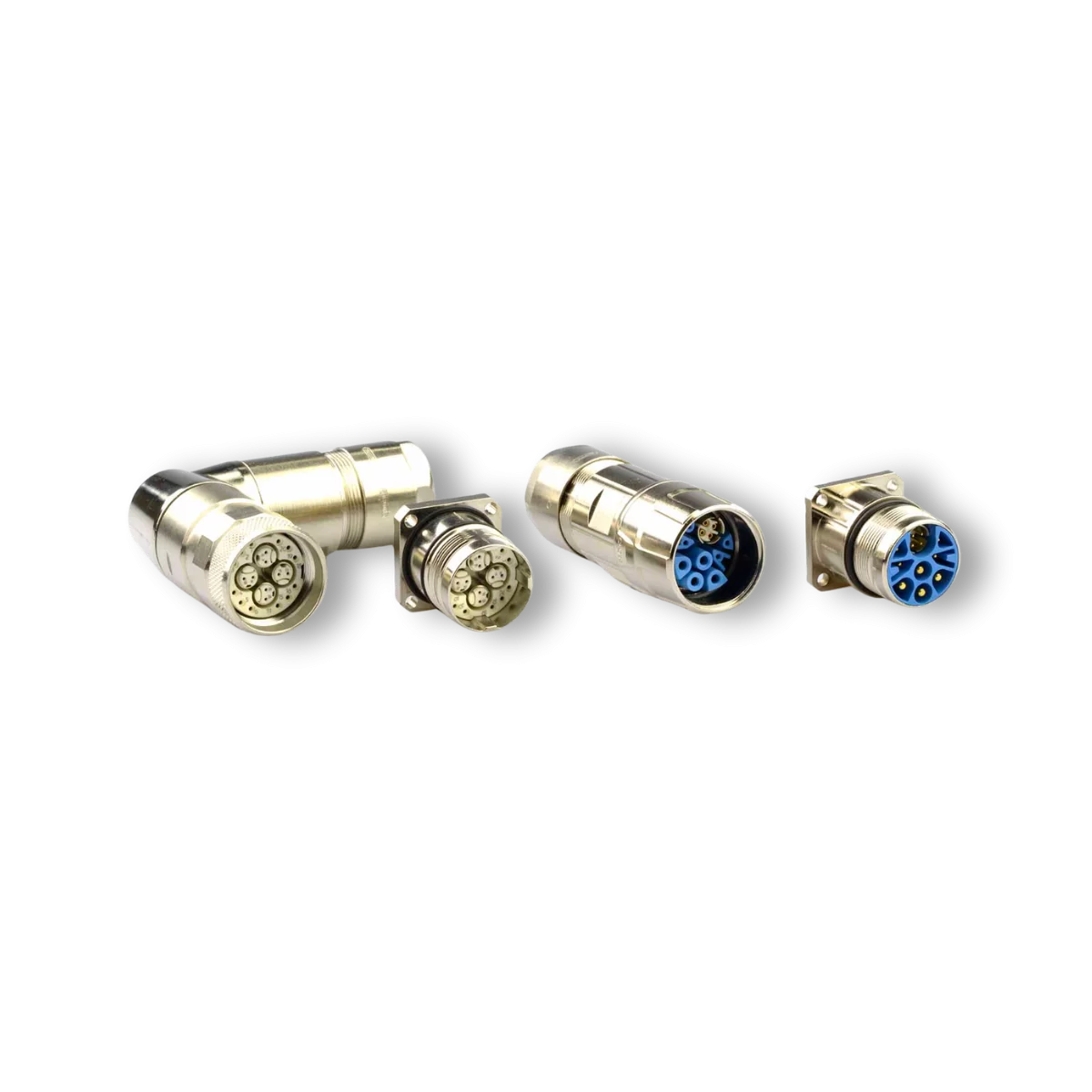

HUMMEL hybrid connectors
saving time, space and money
HUMMEL hybrid connectors combine power, data and signal lines in a single compact interface.
This saves space, installation time and cabling, without compromising on performance or safety.
Within the M23 and M40 series, the connectors support CAT.5e data speeds (1 Gbit/s) and power ratings up to 630 V / 28 A.
Thanks to their modular design and multiple coding options, they adapt easily to the specific requirements of your application.
The result: fewer cables, faster installation and maximum reliability.
