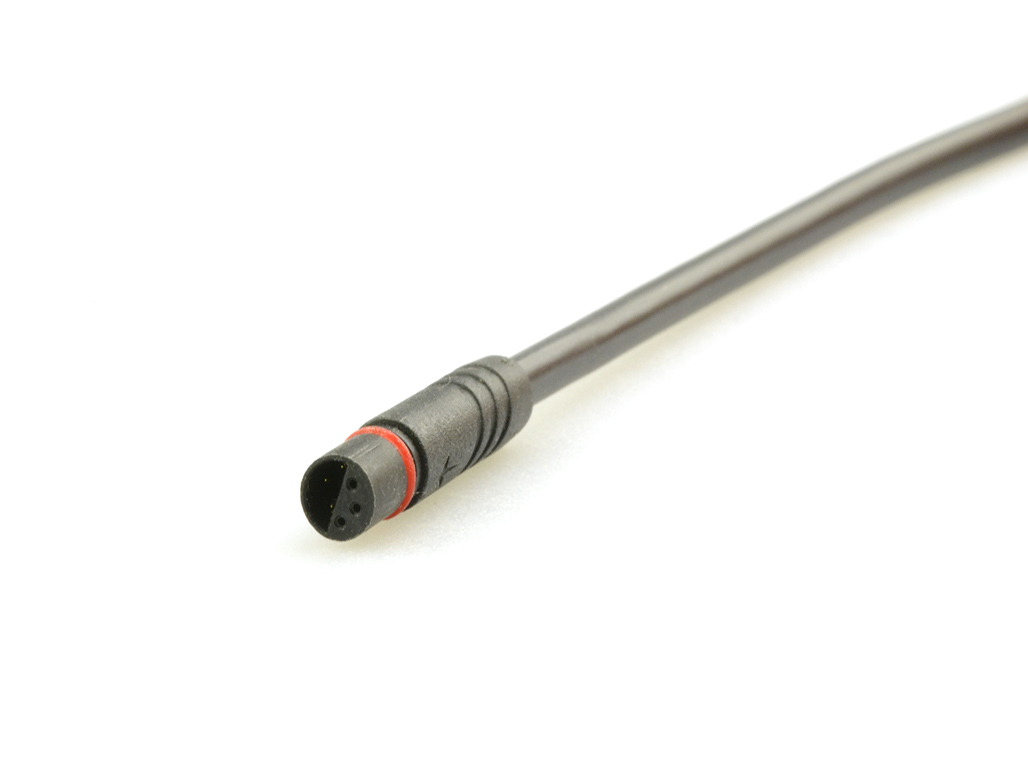

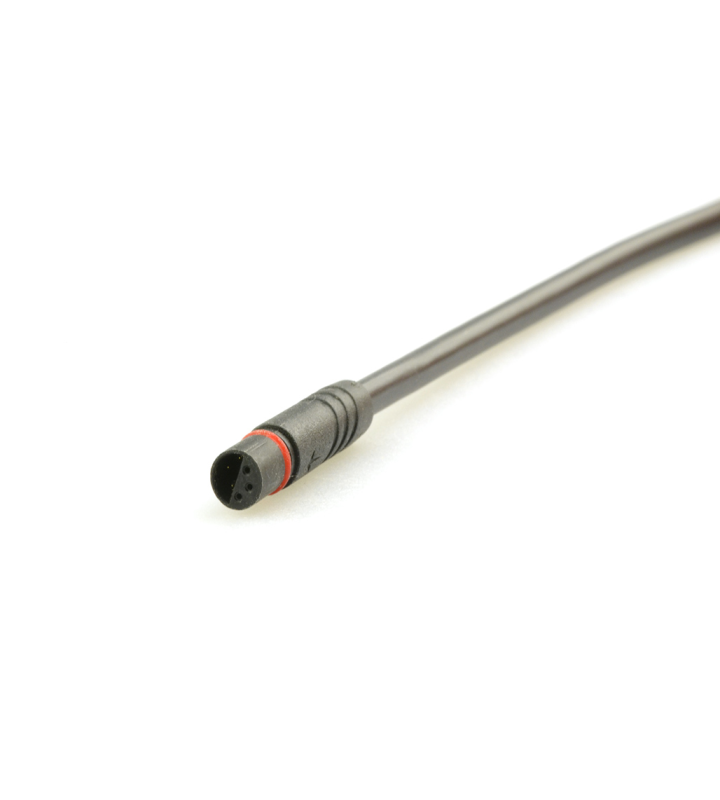

Micro Q female plug connector
Z606QM P 00 FZ 1000
Vraag een offerte aan
Favoriet toevoegen
Specificaties
General Characteristics
|
Color
|
Black
|
|
Mating cycles
|
50 Mating times
|
|
IP Protection
|
IP67
|
|
Remark
|
Other cable length/type on request
|
|

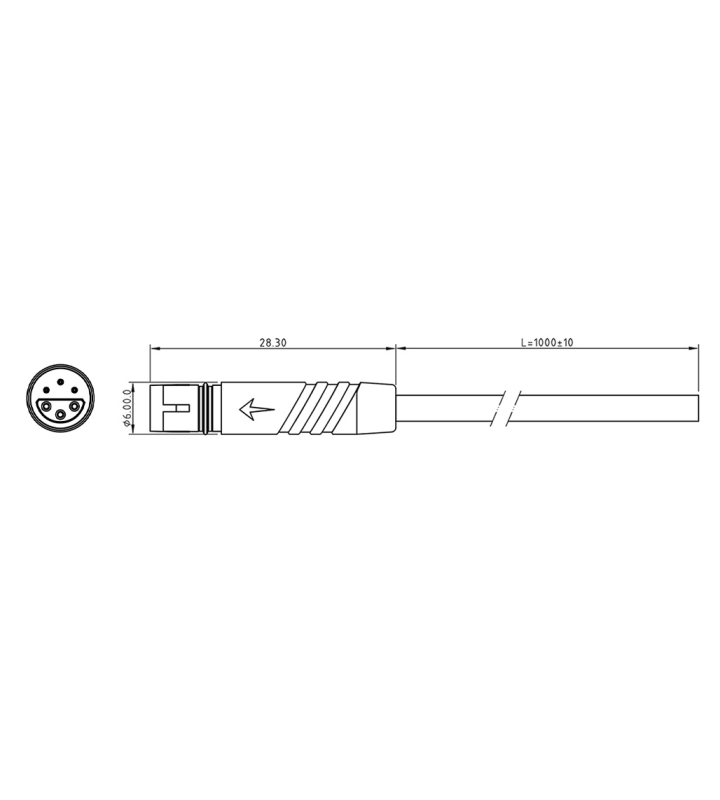

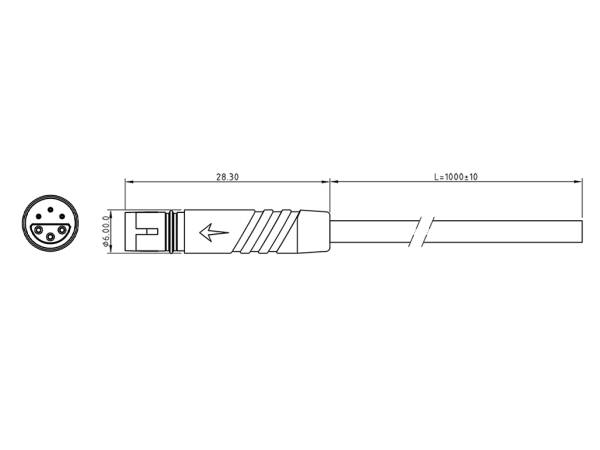

Connector diameter
|
6 mm
|
|
Wire section
|
6 x 0,14 mm²
|
|
Cable Length
|
1000 mm
|
|
Cable diameter
|
2.8 mm
|
|
Locking
|
Push-on (no locking)
|
|
Fitting length
|
50 mm
|
|
Gender
|
Female
|
|
Lower temperature
|
-25 °C
|
|
Number of contacts
|
6
|
|
Upper temperature
|
80 °C
|
Electrical Parameters
|
Max. contact resistance
|
â¤10 MΩ
|
|
Max. insulation resistance
|
â¥20 MΩ
|
|
Rated voltage
|
48 V AC / 60 V DC
|
|
Rated current
|
2 A
|
Material
|
Contact plating
|
Gold over Nickel
|
|
Insulation wire
|
FEP
|
|
Material jacket
|
TPU
|
|
Material of contact
|
Copper Alloy
|
Product finder selection criteria
|
Gender
|
Female
|
|
Locking
|
Push-on (no locking)
|
|
Number of contacts
|
6
|
|
Rated current
|
â¤5 A
|
|
Nominal voltage
|
â¤200 V
|
|
IP Protection
|
IP67
|
