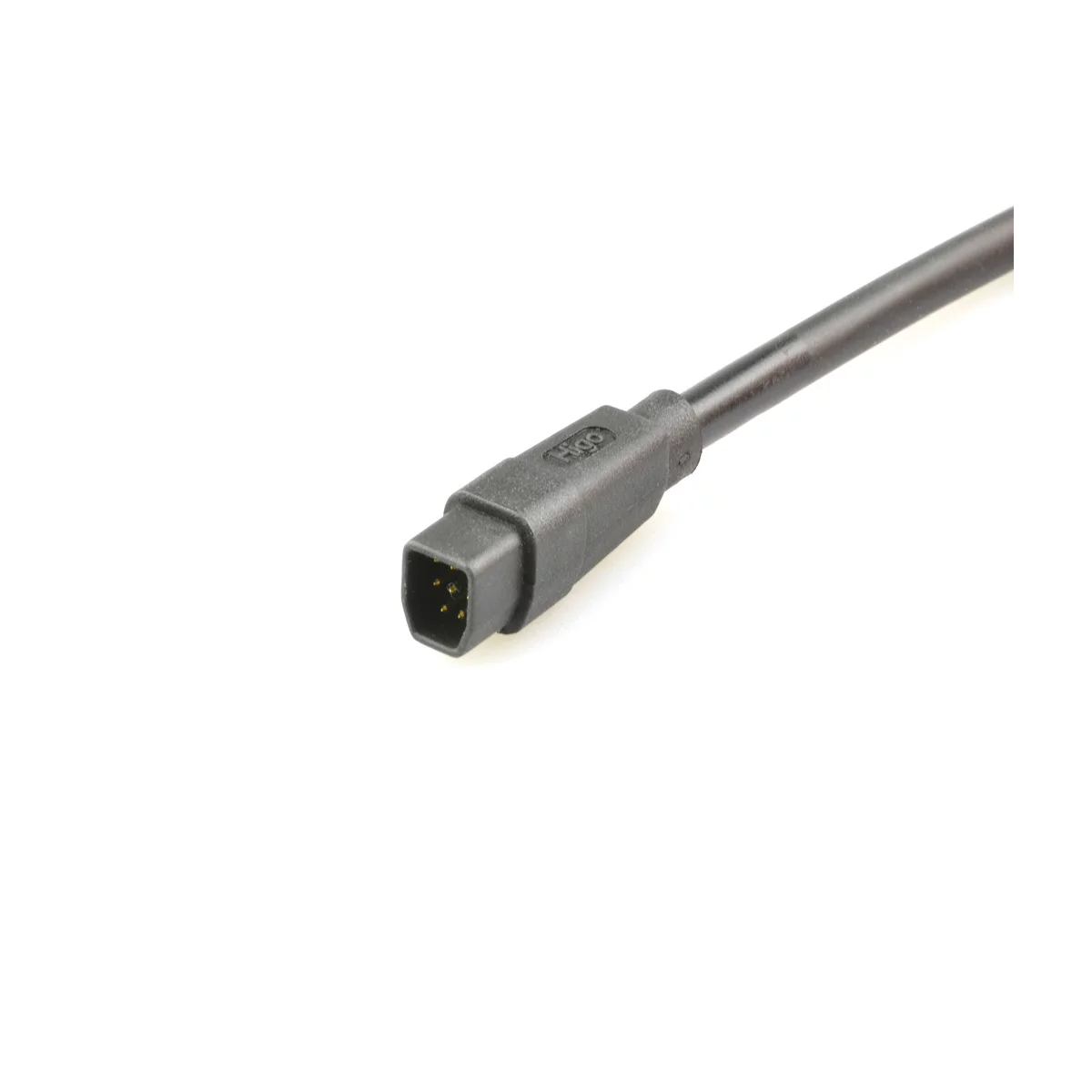

Mini F male cable connector
Z809FG P 00 DL 1000
Specifications
General Characteristics
| Number of contacts | 8 |
|---|---|
| Connector shape | Plug |
| Gender | Male |
| Color | Grey |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP66/IP67 |
| Mating cycles | 200 Times |
| Connector diameter | see drawing |
| Fitting length | 54 mm |
| Cable Length | 1000 mm |
| Cable diameter | 4.2 mm |
| Wire section | 0.14 mm² |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | FEP |
| Material of contact | / |
