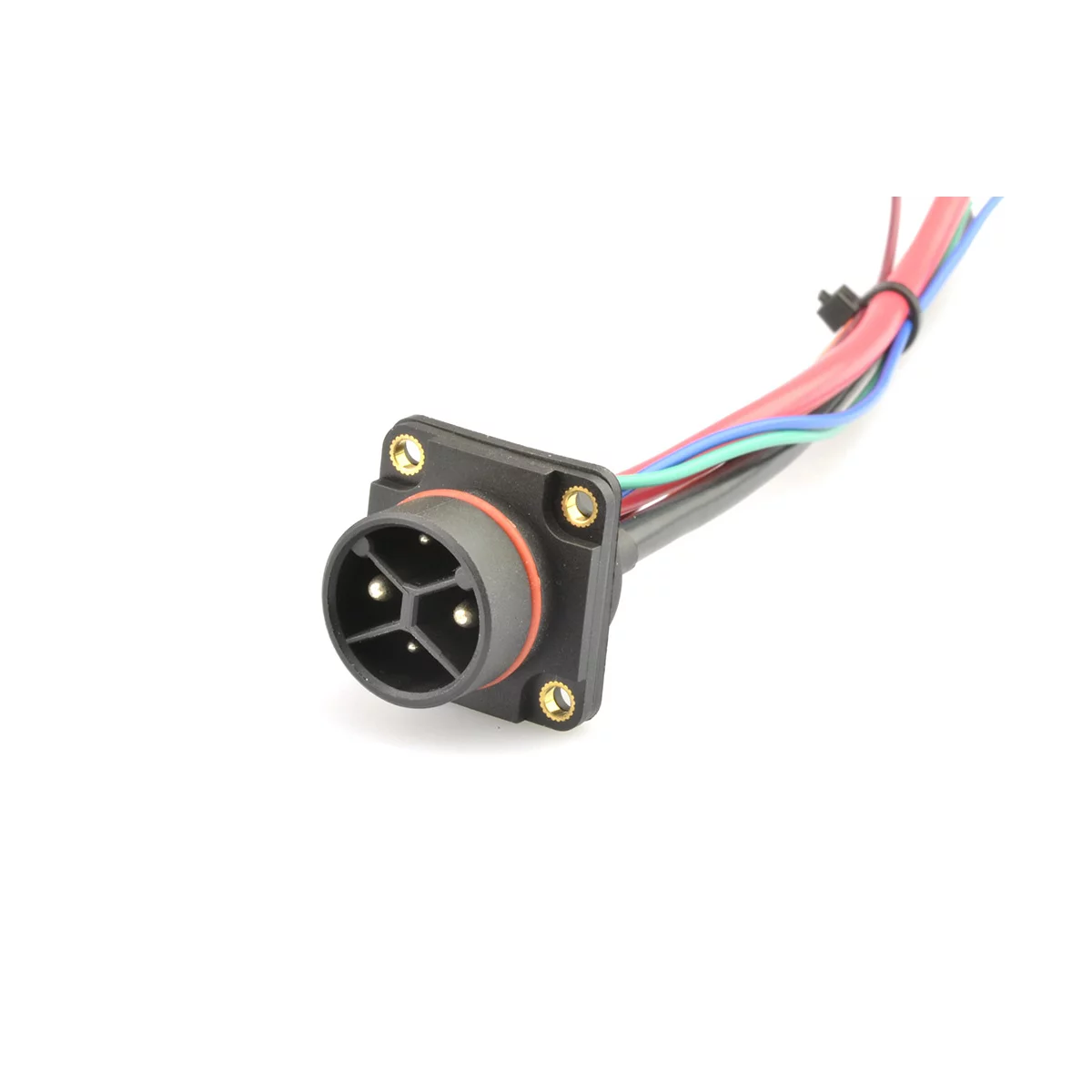

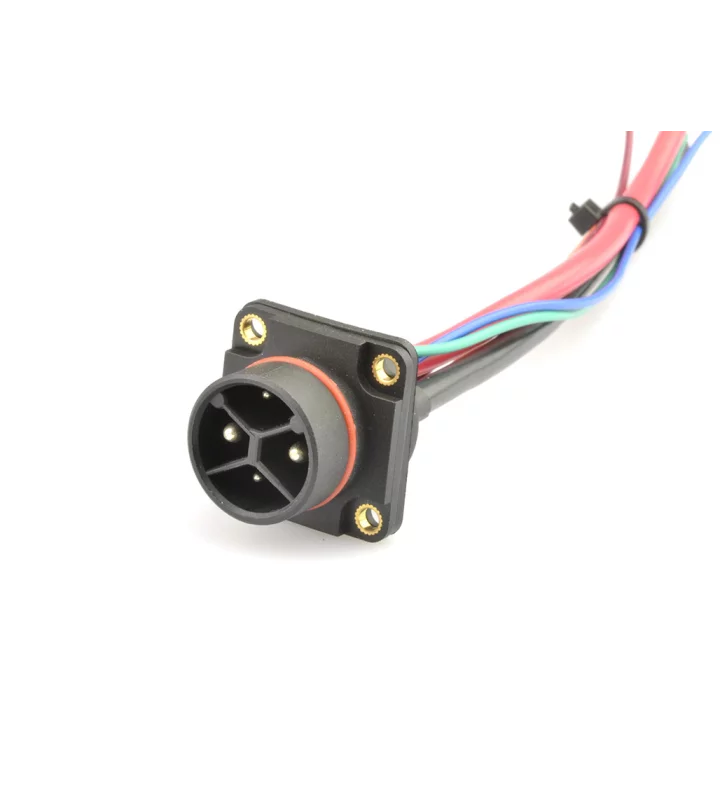

Battery male panel mount connector 48V code, no locking (push-on)
Only for use in 48V applications
Z624BG C 03 DR 0300
Specifications
General Characteristics
|
Number of contacts |
6 (2+4)
|
|
Connector shape |
Panel mount
|
|
Gender |
Male
|
|
Color |
Black
|
|
Upper temperature |
80 °C
|
|
Lower temperature |
-25 °C
|
|
IP Protection |
IP67
|
|
Mating cycles |
3000 Times
|
|
Connector diameter |
28.5 mm
|
|
Cable Length |
Single wires 300
|
|
Wire section |
2 x 4,0 + 4 x 0,20
|
|
Remark |
Other cable length/type on request
|
Electrical Parameters
|
Rated current |
40 / 5 A
|
|
Rated voltage |
48 V AC / 60 V DC
|
|
Max. insulation resistance |
≥20 MΩ
|
|
Max. contact resistance |
≤10 mΩ
|
Material
|
Material of contact |
Phosphor bronze
|
|
Contact plating |
Gold over Nickel
|
