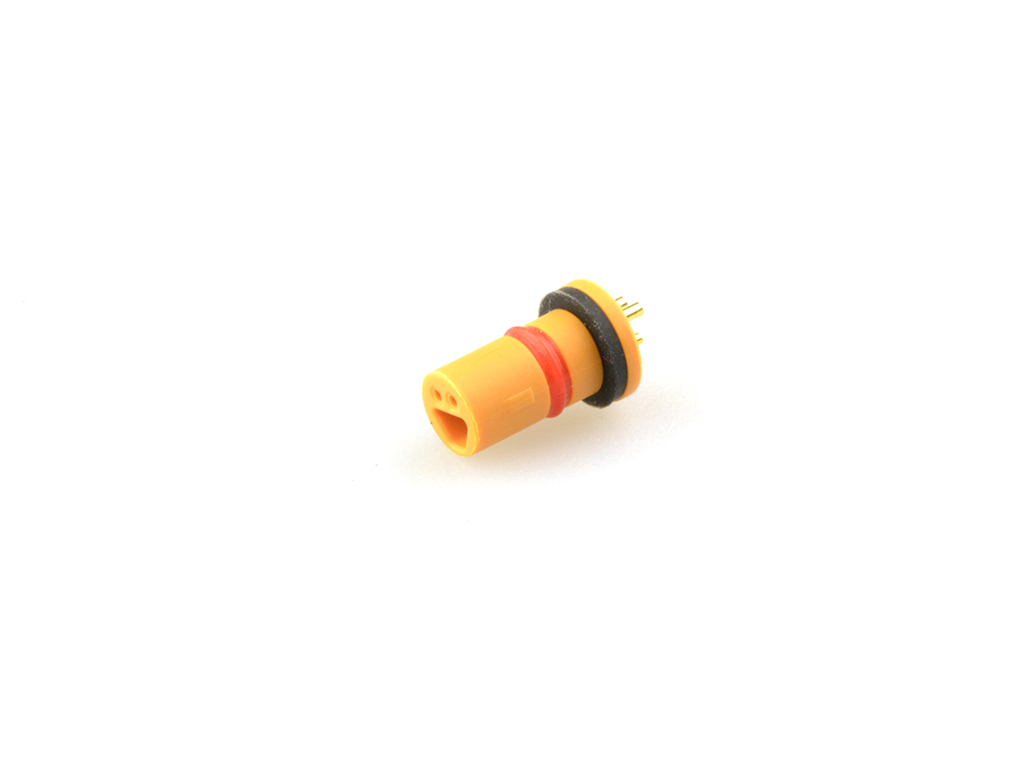

Micro Q female panel mount connector
Z306QM C 04 00 0000
Specifications
General Characteristics
| Connector shape | Panel mount |
|---|---|
| Gender | Female |
| Color | Yellow |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Mating cycles | 50 Times |
| Connector diameter | 6 mm |
| Terminal type | IP67 |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Material of contact | 3 Copper Alloy |
|---|---|
| Contact plating | Gold over Nickel |
Variations
| Item number | Material of contact | Color | Number of contacts | Terminal type |
|---|---|---|---|---|
| Z606QM C 04 00 0000 | Copper Alloy | Black | 6 |
