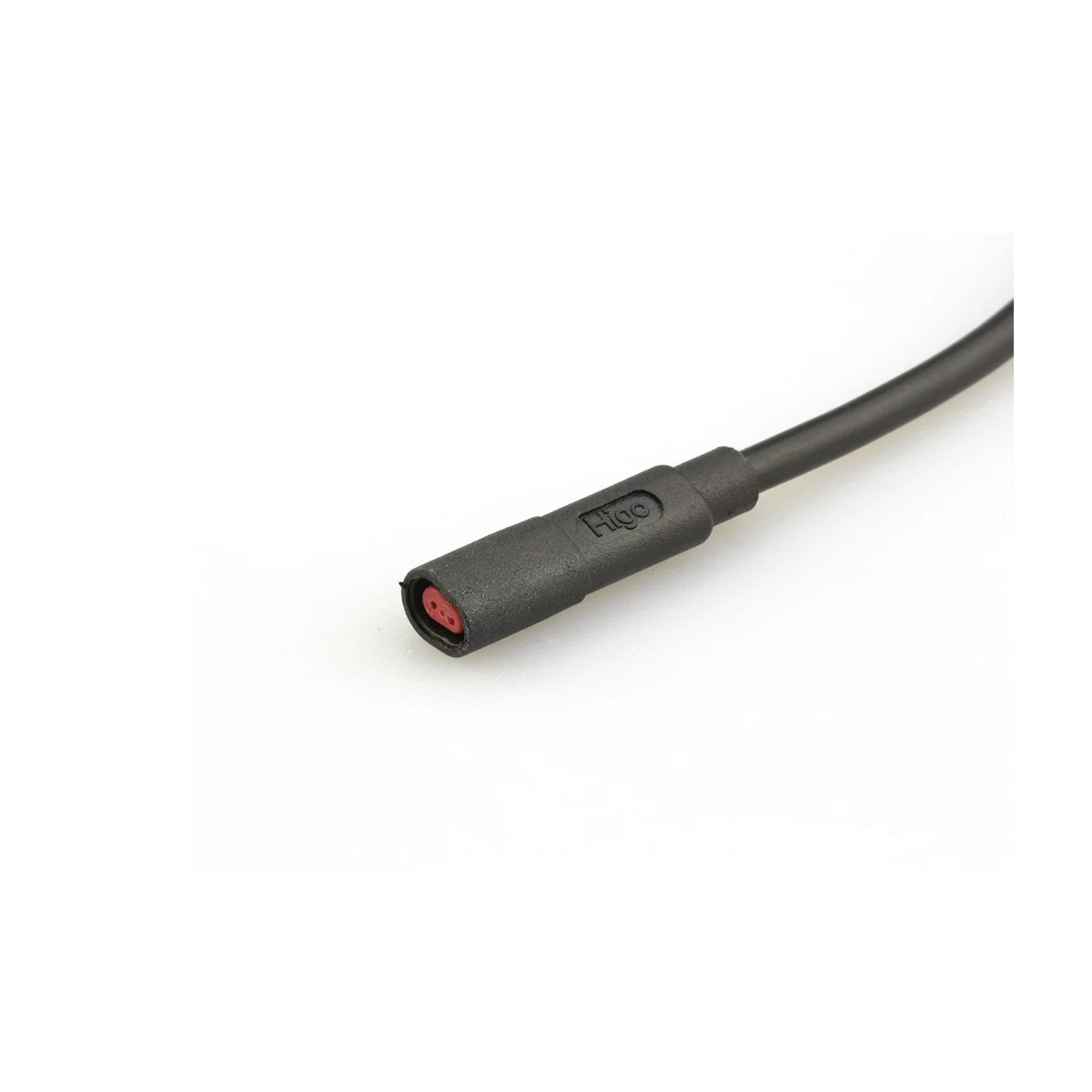

Mini F female cable connector
Z209FM P 00 AW 1000
Specifications
General Characteristics
|
Number of contacts |
2
|
|
Connector shape |
Plug
|
|
Gender |
Female
|
|
Color |
Red
|
|
Upper temperature |
80 °C
|
|
Lower temperature |
-25 °C
|
|
IP Protection |
IP66/IP67
|
|
Mating cycles |
200 Times
|
|
Connector diameter |
see drawing
|
|
Fitting length |
54 mm
|
|
Cable Length |
1000 mm
|
|
Cable diameter |
3,7 mm
|
|
Wire section |
0,2 mm²
|
Electrical Parameters
|
Rated current |
2 A
|
|
Rated voltage |
48 V AC / 60 V DC
|
|
Max. insulation resistance |
≥20 MΩ
|
|
Max. contact resistance |
≤10 mΩ
|
Material
|
Material jacket |
TPU
|
|
Insulation wire |
Teflon
|
|
Material of contact |
/
|
