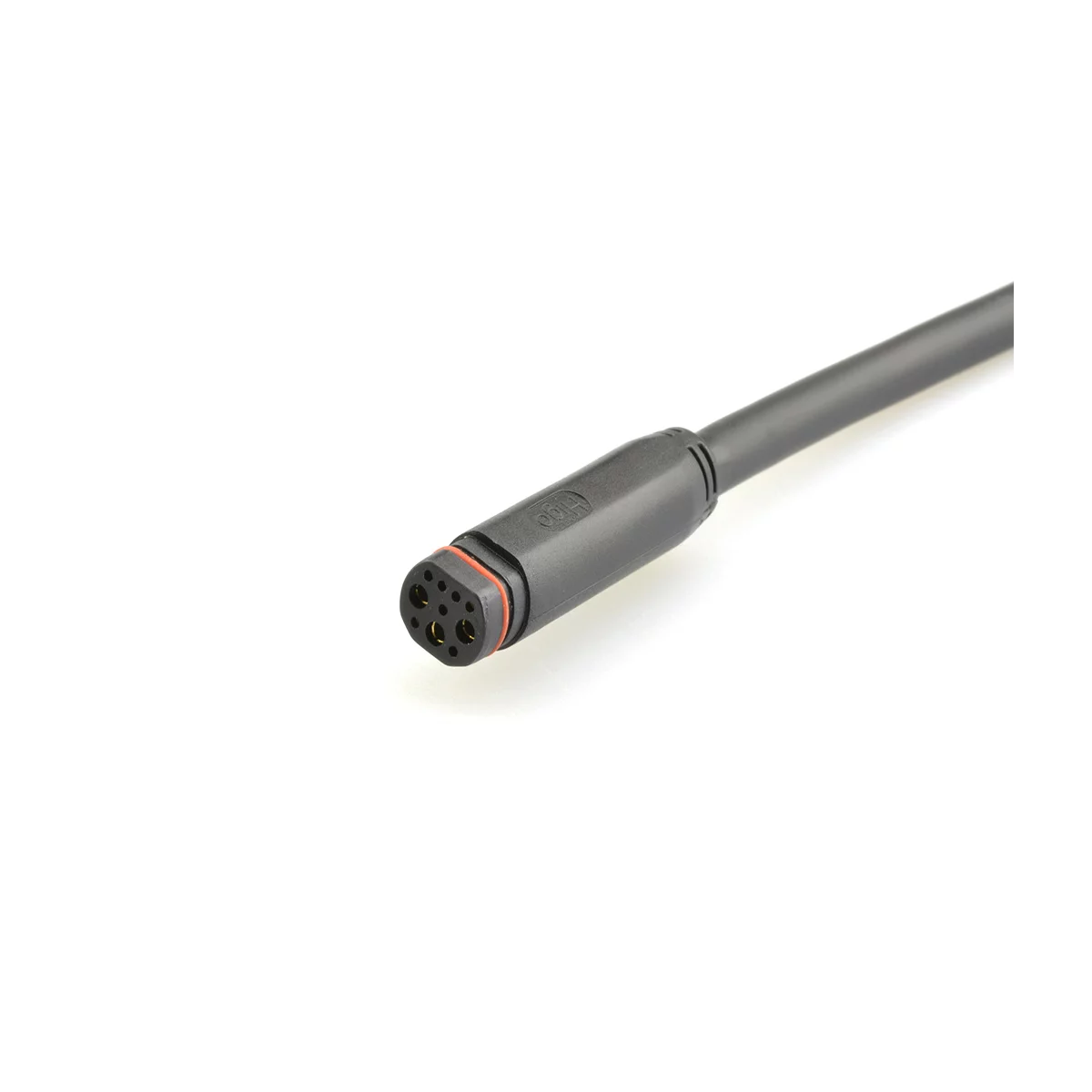

Female cable connector
Z1012BM P 00 FB 1000
Specifications
General Characteristics
| Number of contacts | 10 (3+7) |
|---|---|
| Connector shape | Plug |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IPX7 |
| Mating cycles | 200 Times |

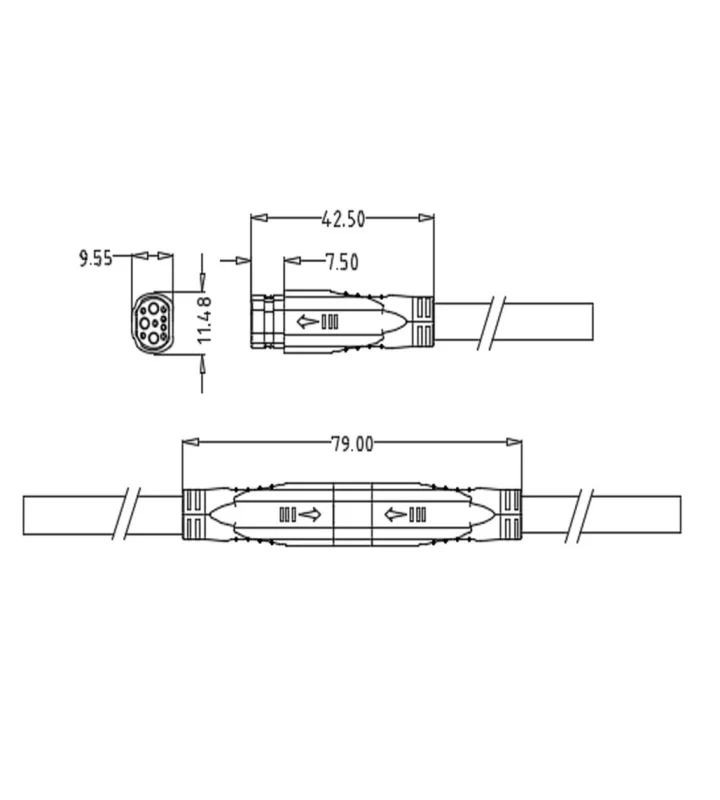

| Connector diameter | 11,48 x 9,55 mm |
| Fitting length | 79 mm |
| Cable Length | 1000 mm |
| Cable diameter | 7 mm |
| Wire section | 3 x 2,0 + 7 x 0,14 |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 20 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | FEP |
| Material of contact | Copper Alloy |
| Contact plating | Gold over Nickel |
