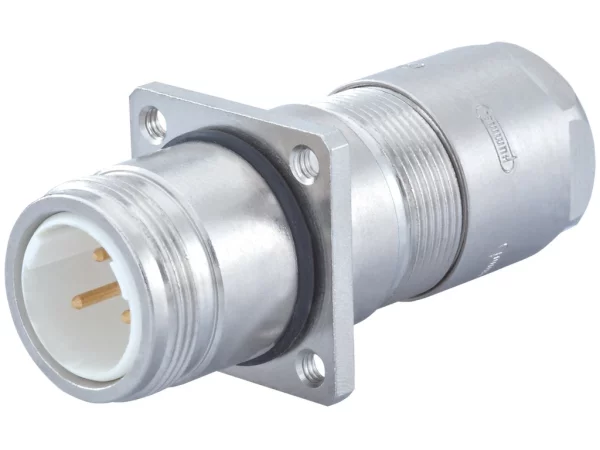

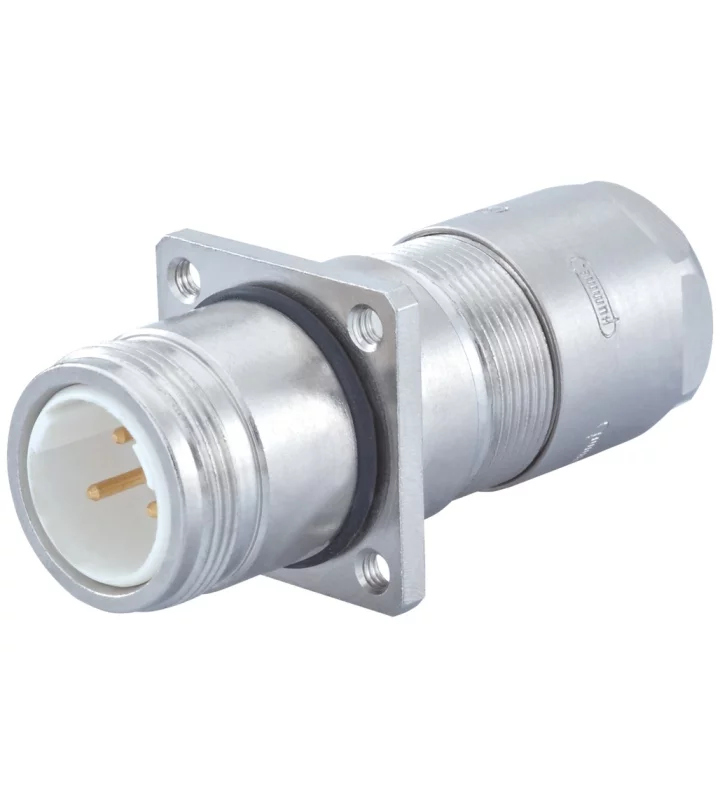

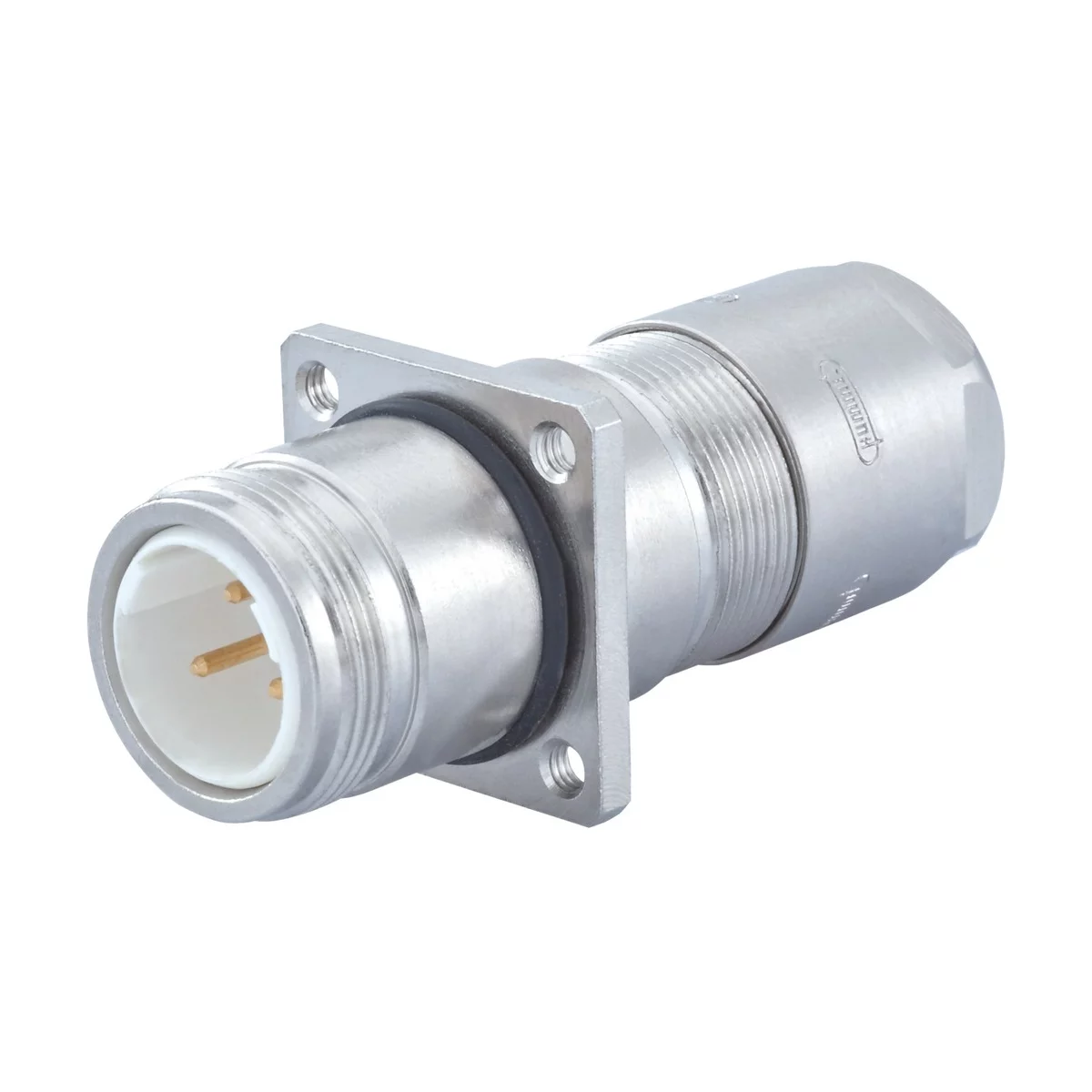

Panel Connector with built in Cable Strain Relief
Rear mounting
M 2,5 x 4 single hole mounted
7.847.400.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M16 |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw/Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Cable diameter | 5 - 9 mm |
Material
| Housing material | Copper-Zinc alloy, Die cast |
|---|---|
| Housing plating | Nickel plated |
Variations
| Item number | Cable diameter (mm) | Cable diameter |
|---|---|---|
| 7.847.300.000 | 2 - 7 mm | 2 - 7 mm |
