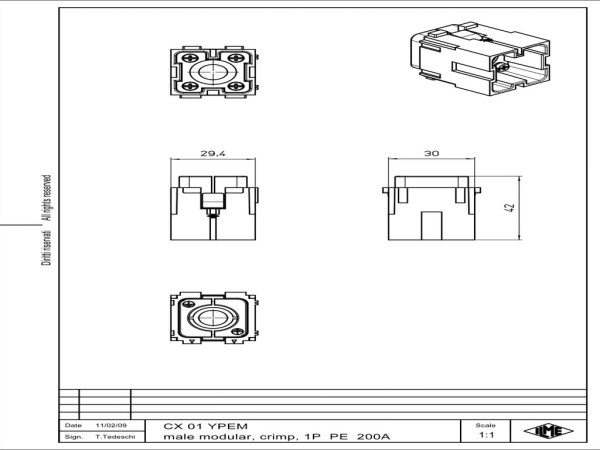

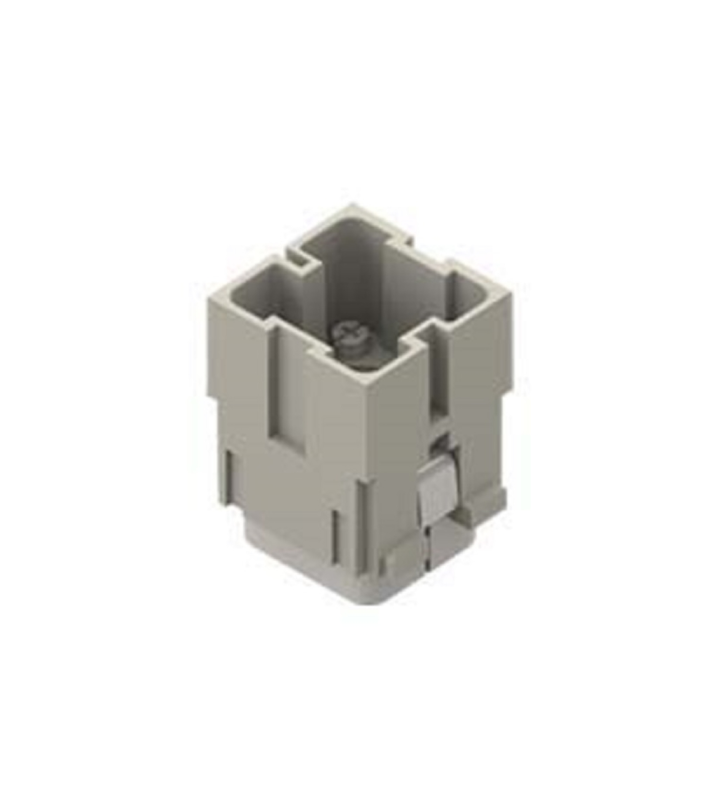

male insert, MIXO, 2MU, 1PE, crimp, 200A
CX 01 YPEM
Toevoegen aan offertemandje Favoriet toevoegenStel je connector verder samen
Voeg de gewenste contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo |
| Number of contacts | 1 PE |
| Connection type | Crimp connection |
| Gender | Male |
| Number of module slots | 2 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 6 |
| Min. Cross section | 16 mm² |
| Max. Cross section | 70 mm² |
| Diameter male contact | 9.5 mm |
| Colour | Grey mm² |
| Extra information | Contact insert without contacts |
| Remark | Only for housings & high construction hoods mm |
Electrical parameters
| Max. rated current | 200 A |
|---|---|
| Nominal rated voltage | 600 V |
| Over voltage category | IV m |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 mm |
