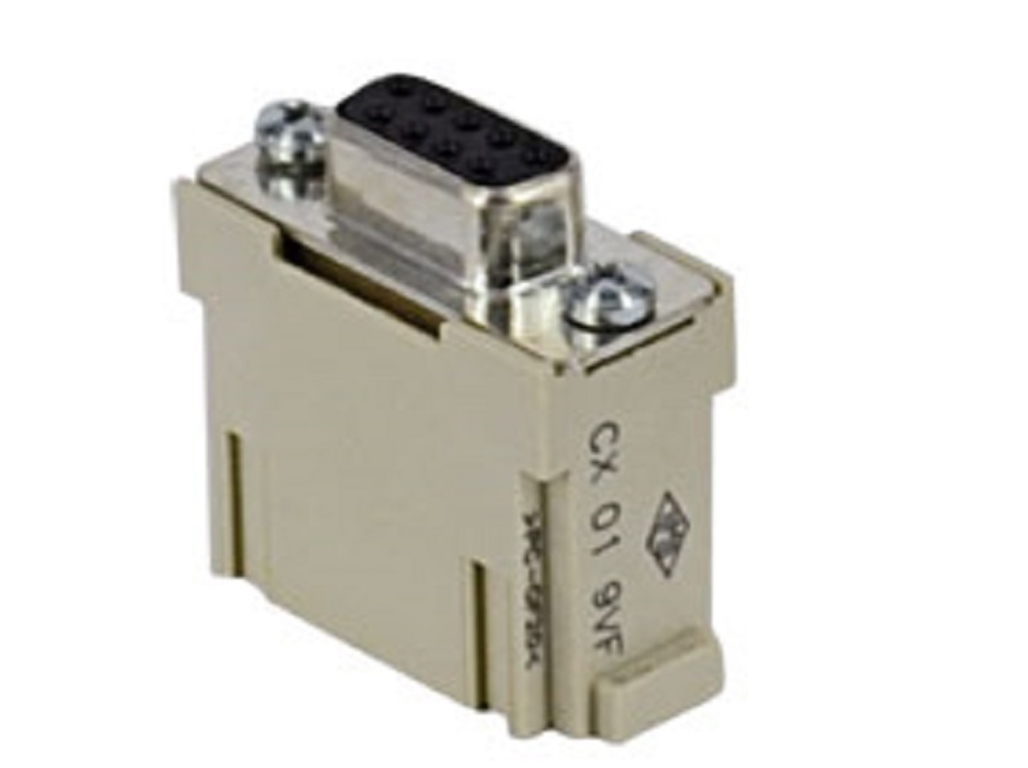

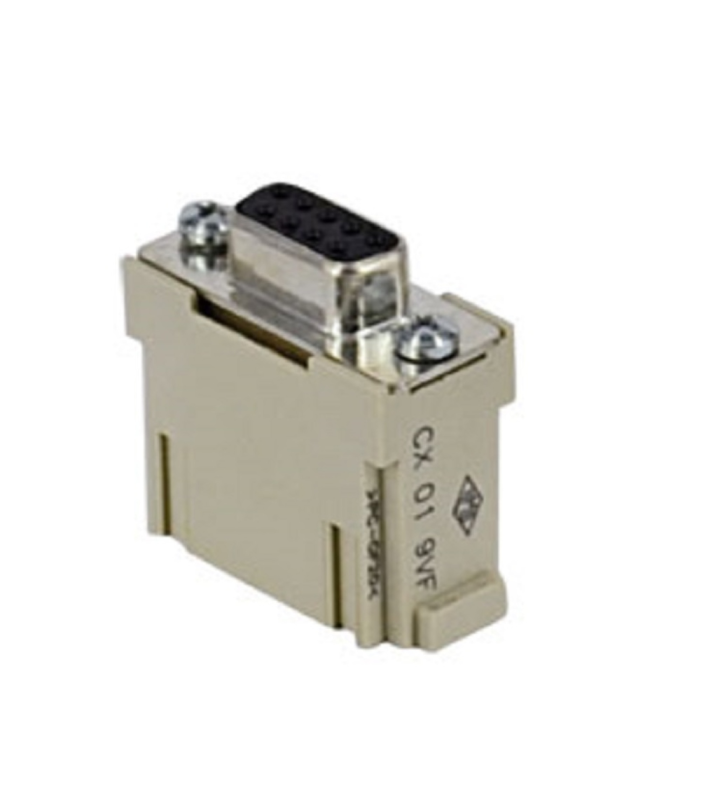

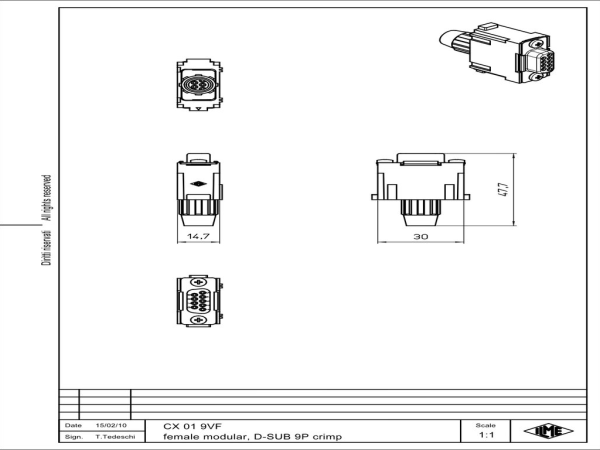

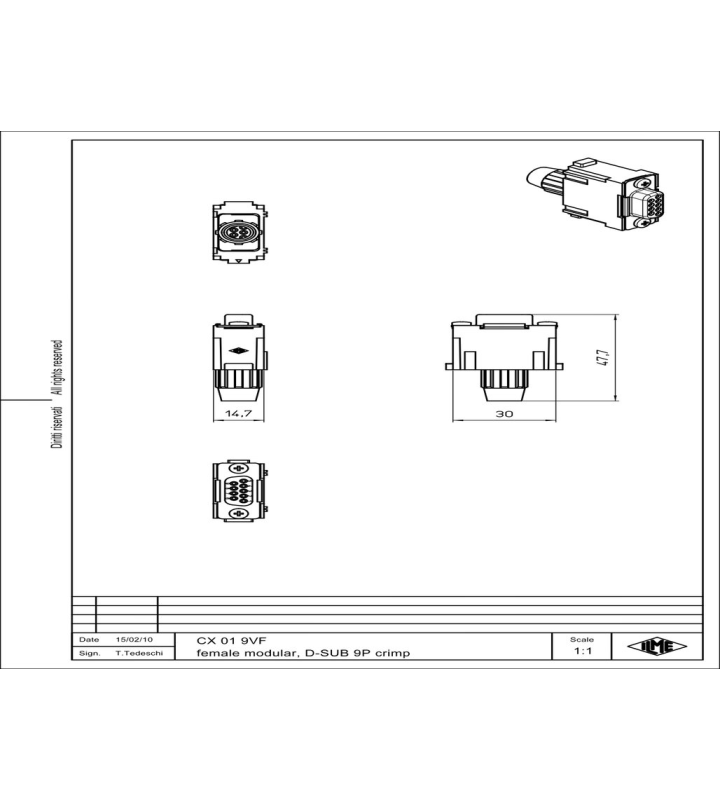

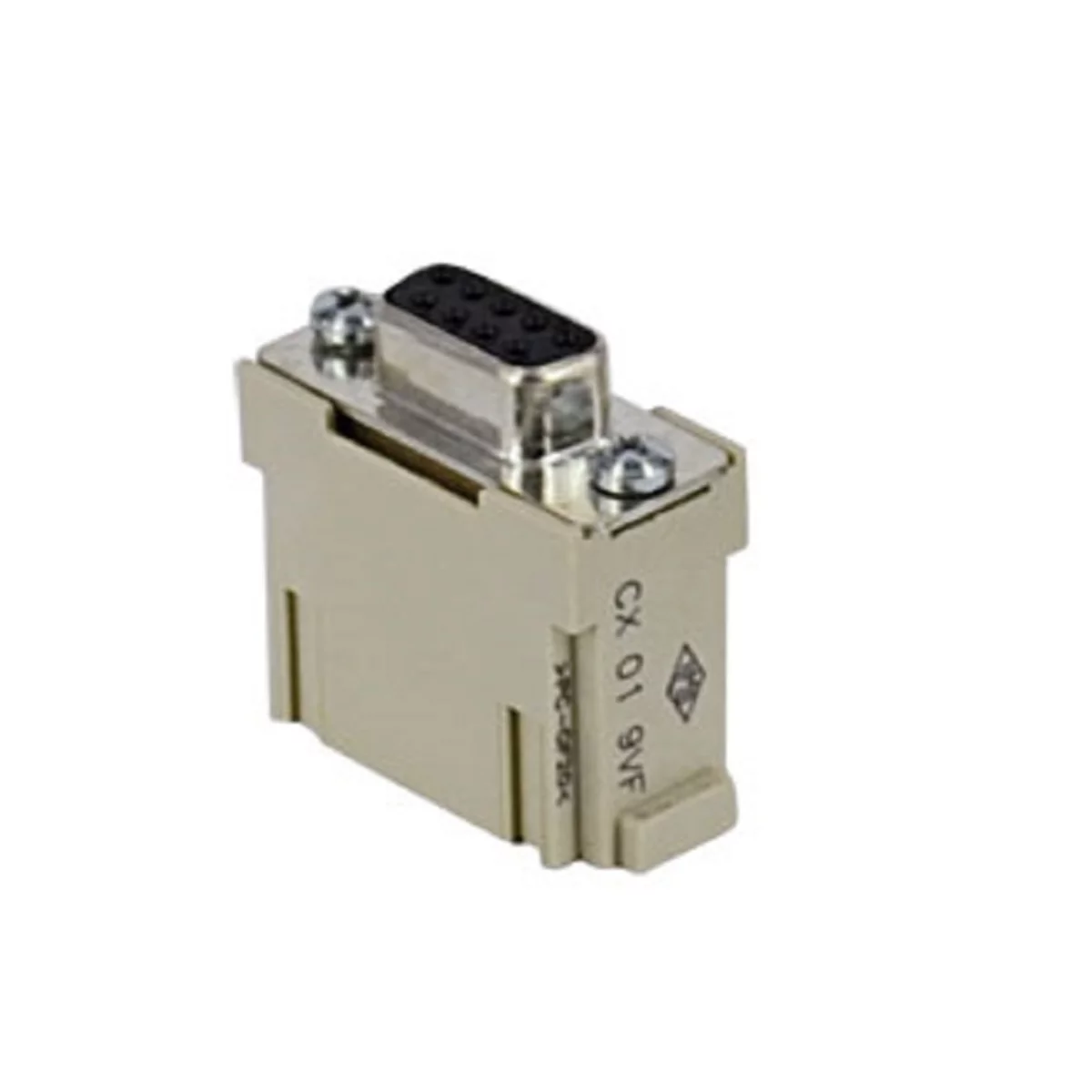

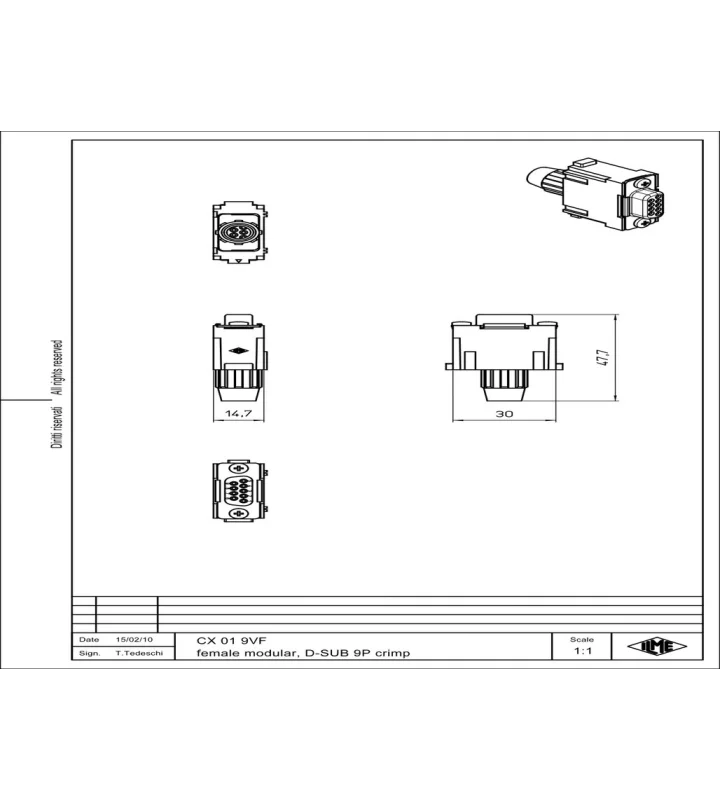

female insert, MIXO, 1MU, 9p, crimp, 5A, 50V, D-SUB
CX 01 9VF
Toevoegen aan offertemandje Favoriet toevoegenStel je connector verder samen
Voeg de gewenste contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo Data |
| Number of contacts | 9 |
| Connection type | D-SUB |
| Gender | Female |
| Number of module slots | 1 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 70 °C |
| AWG-range 1 | 28 |
| AWG-range 2 | 20 A |
| Min. Cross section | 0.08 mm² |
| Max. Cross section | 0.52 mm² |
| Colour | Grey mm² |
| Extra information | Contact insert without contacts |
Electrical parameters
| Max. rated current | 5 A |
|---|---|
| Nominal rated voltage | 50 V |
| Over voltage category | III m |
| Rated surge voltage | 0.8 mm |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 mm |
