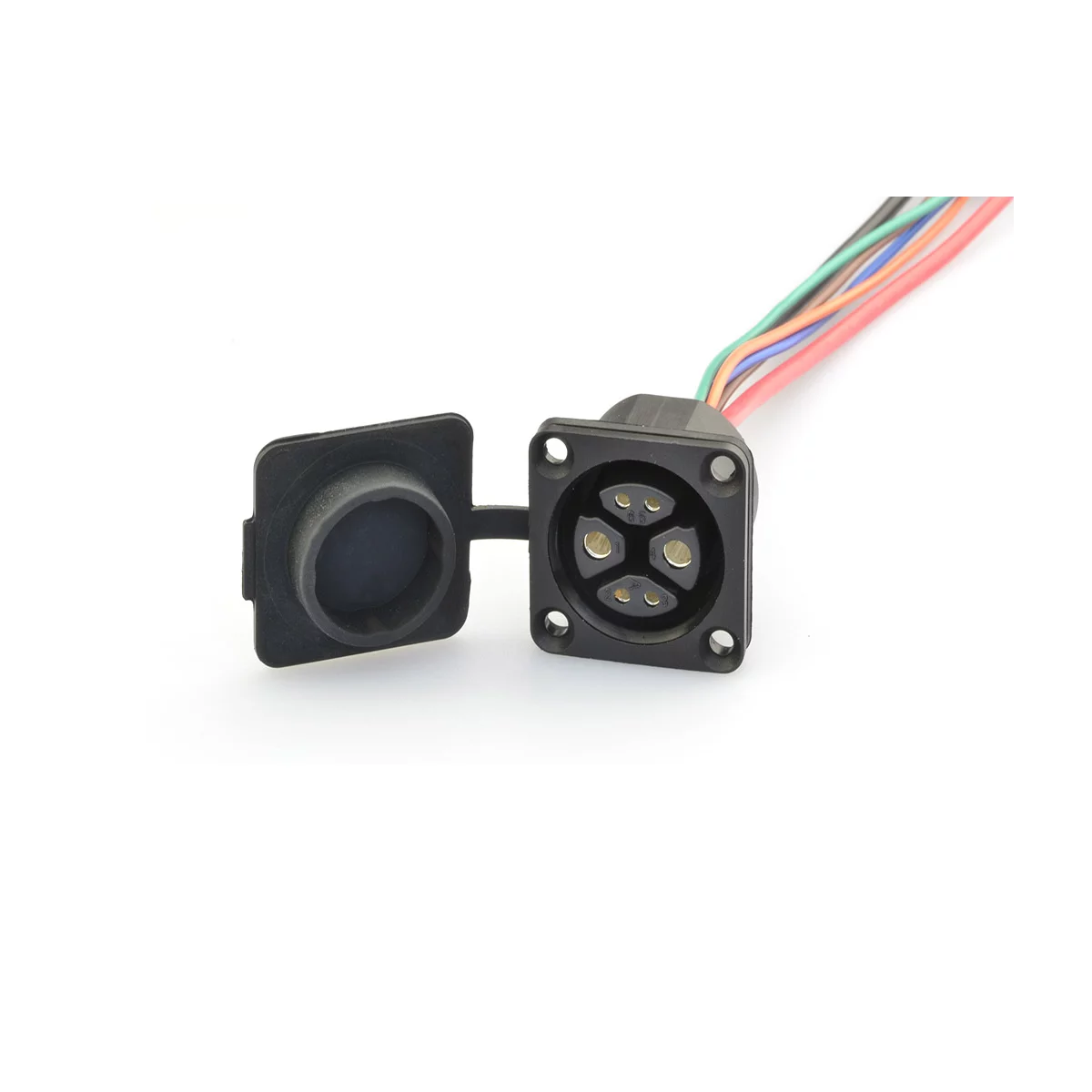

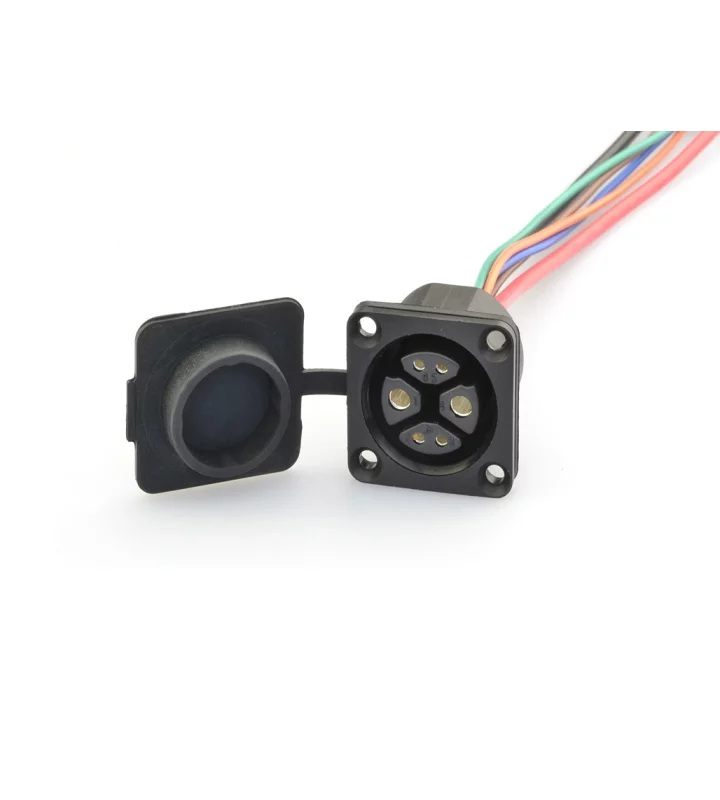

Battery female panel mount connector 48V code, no locking (push-on)
Only for use in 48V applications
Z624BM C 03 DR 0300
Specificaties
General Characteristics
| Number of contacts | 6 (2+4) |
|---|---|
| Connector shape | Panel mount |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Mating cycles (times) | 3000 Times |
| Connector diameter | 28.5 mm |
| Cable Length | Single wires 300 |
| Wire section | 2 x 4,0 + 4 x 0,34 |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 25 / 5 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 mΩ |
Material
| Material of contact | Phosphor bronze |
|---|---|
| Contact plating | Gold over Nickel |
