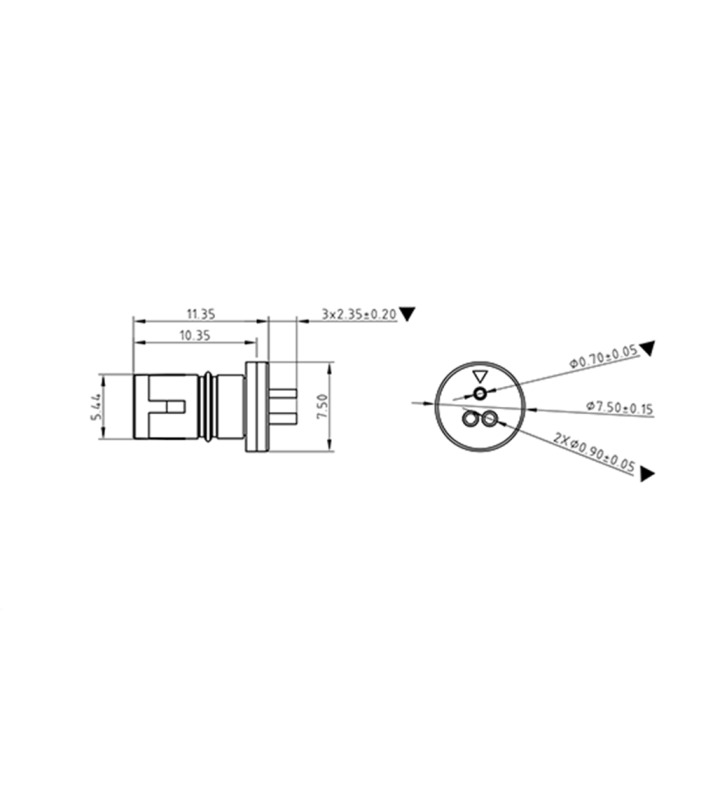

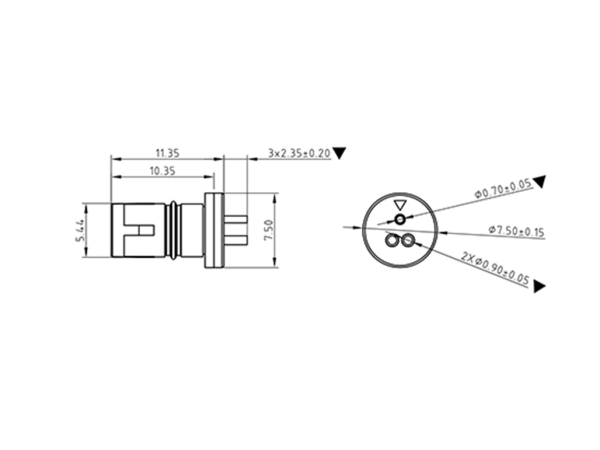

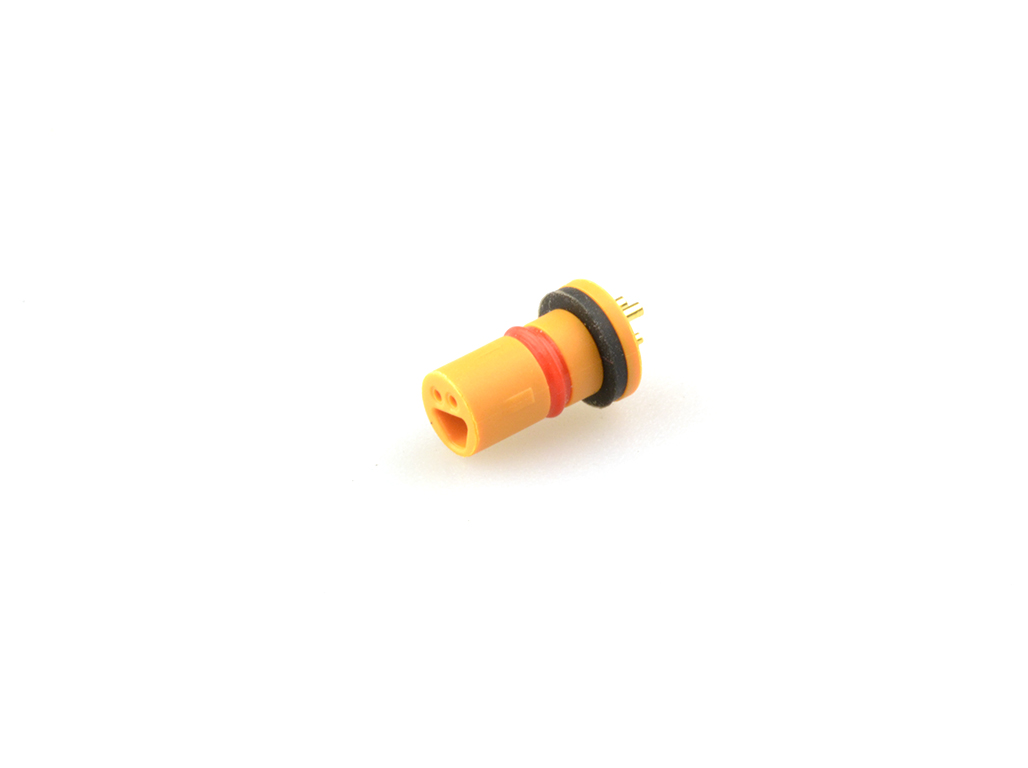

Micro Q female panel mount connector
Z306QM C 04 00 0000
Toevoegen aan offertemandje
Favoriet toevoegen
Specificaties
Algemene kenmerken
|
Color
|
Yellow
|
|
Mating cycles (times)
|
50 Mating times
|
|
Protection degree
|
IP67
|
|
Connector diameter
|
6 mm
|
|
Terminal type
|
IP67
|
|
Locking
|
Push-on (no locking)
|
|
Gender
|
Female
|
|
Lower temperature
|
-25 °C
|
|
Upper temperature
|
80 °C
|
Elektrische specificaties
|
Max. contact resistance (MΩ)
|
≤10 mΩ
|
|
Max. insulation resistance (MΩ)
|
≥20 mΩ
|
|
Rated voltage
|
48 V AC / 60 V DC
|
|
Rated current
|
≤5
2 A
|
Material
|
Contact plating
|
Gold over Nickel
|
|
Material of contact
|
3
Copper Alloy
|
