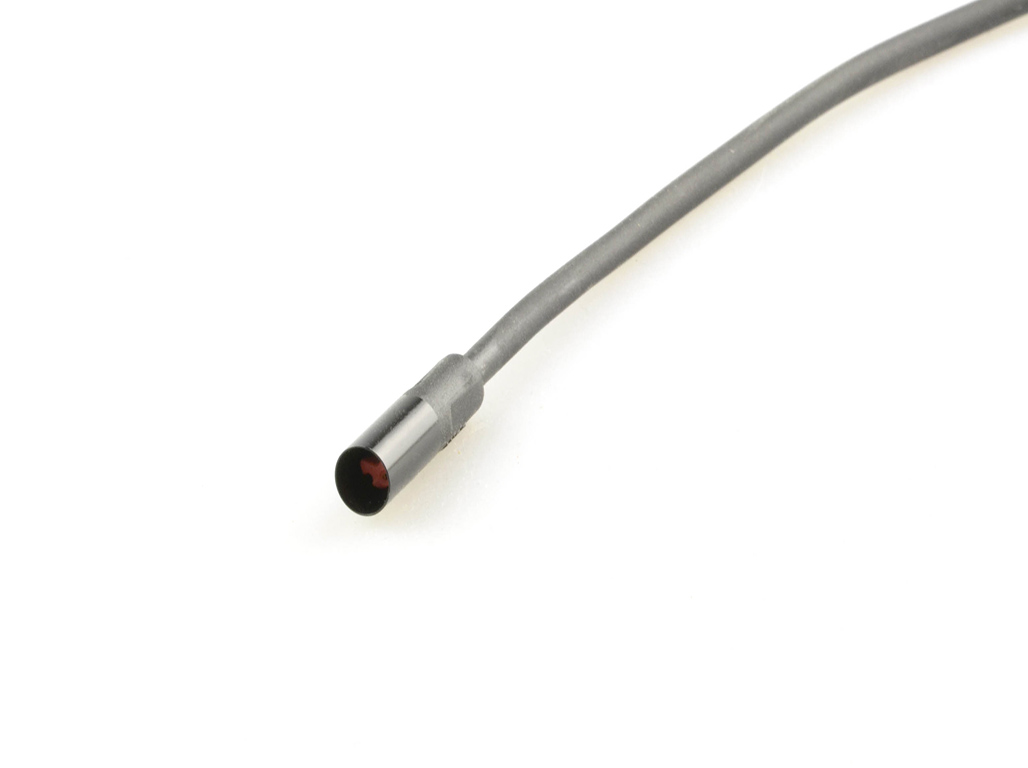

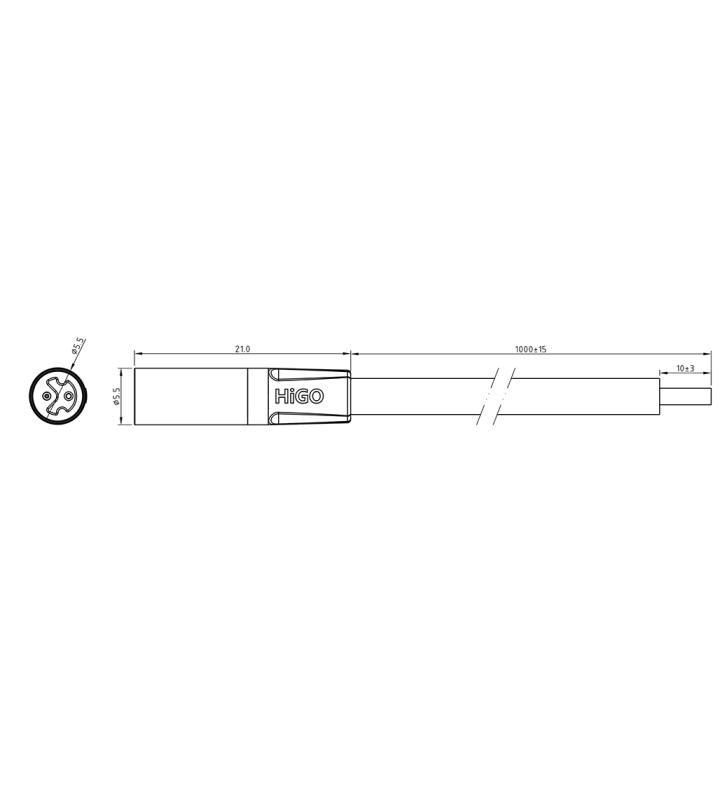

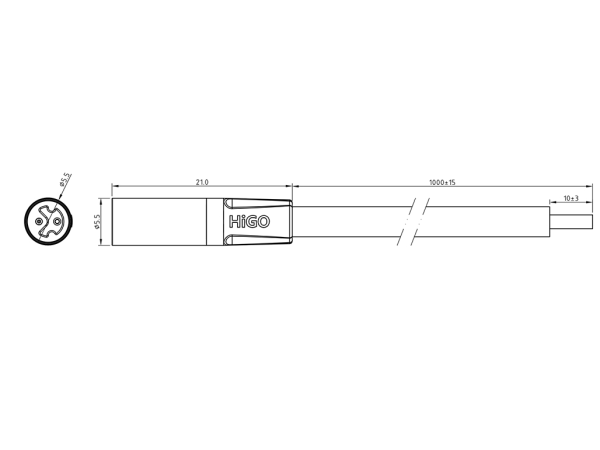

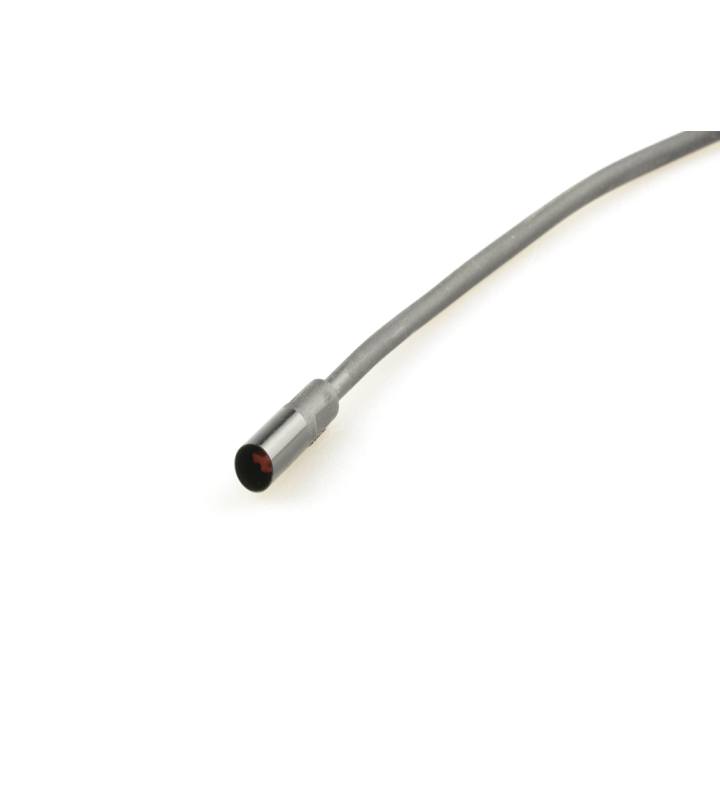

Micro M male cable connector
Z205MG P 00 BT 1000
Toevoegen aan offertemandje Favoriet toevoegenSpecificaties
Elektrische specificaties
| Max. contact resistance (MΩ) | ≤10 mΩ |
|---|---|
| Max. insulation resistance (MΩ) | ≥20 mΩ |
| Rated current | 2 A |
| Rated voltage | 48 V AC / 60 V DC |
Algemene kenmerken
| Cable diameter | 3.3 mm |
|---|---|
| Cable Length | 1000 mm |
| Color | Red |
| Connector diameter | 5.5 mm |
| Fitting length | 30 mm |
| Gender | Male |
| Locking | Push-on (no locking) |
| Lower temperature | -25 °C |
| Mating cycles (times) | 50 Mating times |
| Number of contacts | 2 |
| Protection degree | IP67 |
| Remark | Other cable length/type on request |
| Upper temperature | 80 °C |
| Wire section | 2 x 0,13 mm² |
Material
| Contact plating | Gold over Nickel |
|---|---|
| Insulation wire | PVC |
| Material jacket | TPU |
| Material of contact | Phosphor Bronze |
