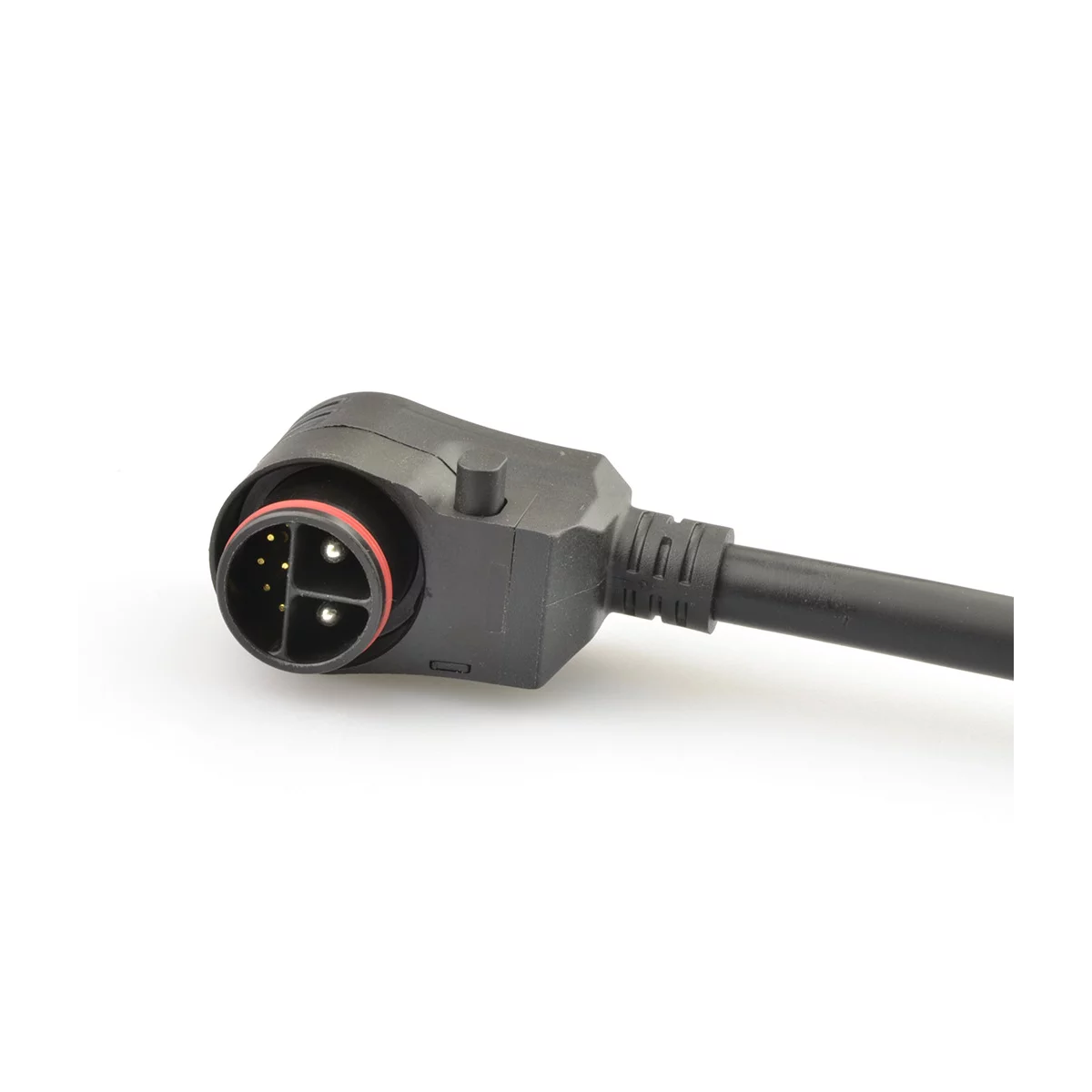

Male cable connector, self-locking, button release
Self-locking, button release
S824BG A 00 FR 1000
Specificaties
General Characteristics
| Number of contacts | 8 (2+6) |
|---|---|
| Connector shape | Angled plug |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Mating cycles (times) | 3000 Times |
| Connector diameter | 25,0 mm |
| Cable Length | 1000 mm |
| Cable diameter | 9 mm |
| Wire section | 2 x 4,0 + 6 x 0,20 |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 40 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 mΩ |
Material
| Material jacket | FEP |
|---|---|
| Insulation wire | PVC |
| Material of contact | Brass |
| Contact plating | Gold over Nickel |
