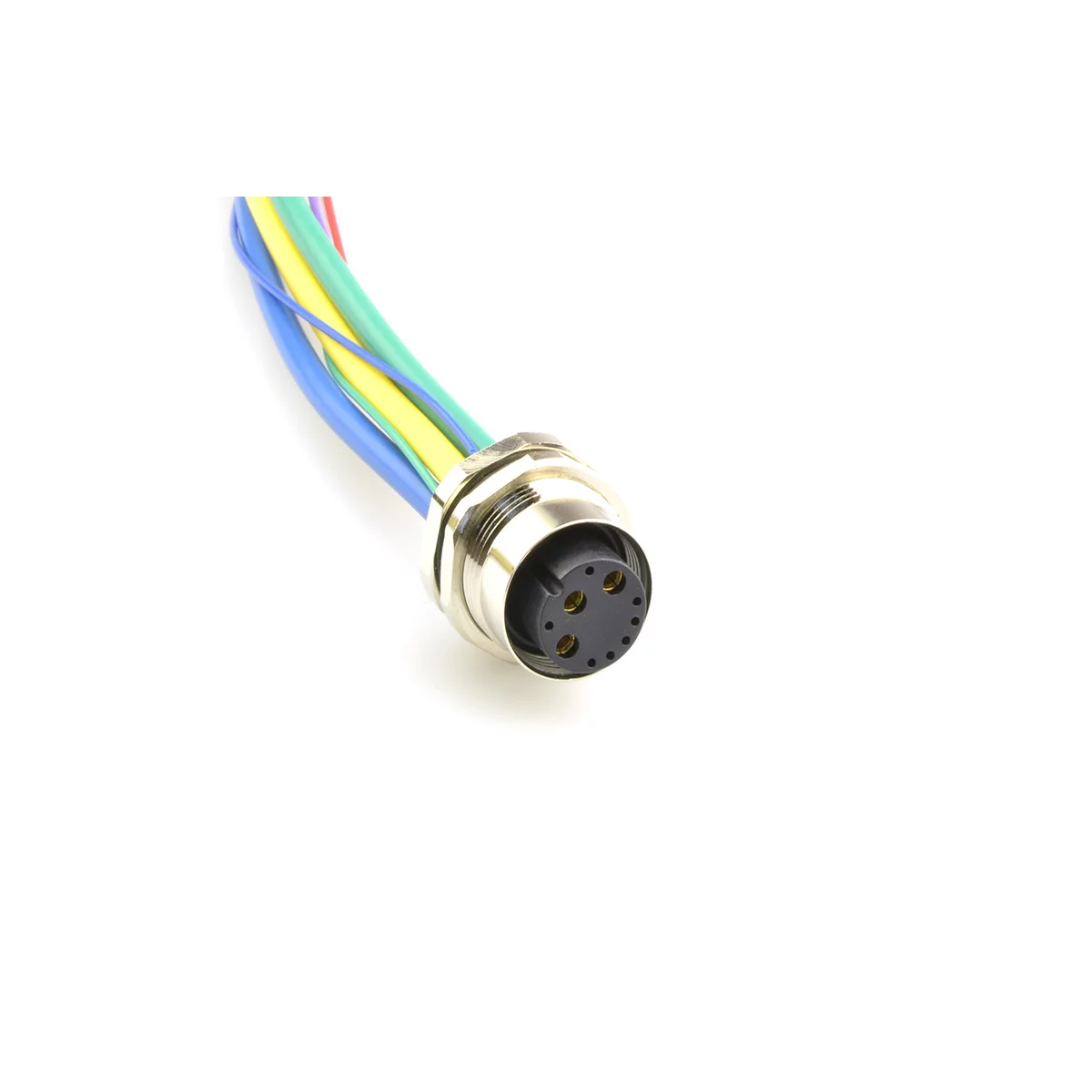

Female rear panel mount connector
L1019AM R 03 DQ 0300
Specificaties
General Characteristics
| Number of contacts | 10 (3+7) |
|---|---|
| Connector shape | Rear panel mount |
| Gender | Female |
| Color | Silver |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Mating cycles (times) | 200 Times |
| Connector diameter | 24 mm |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 30 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 mΩ |
Material
| Material of contact | Phosphor Bronze |
|---|---|
| Contact plating | Gold over Nickel |
