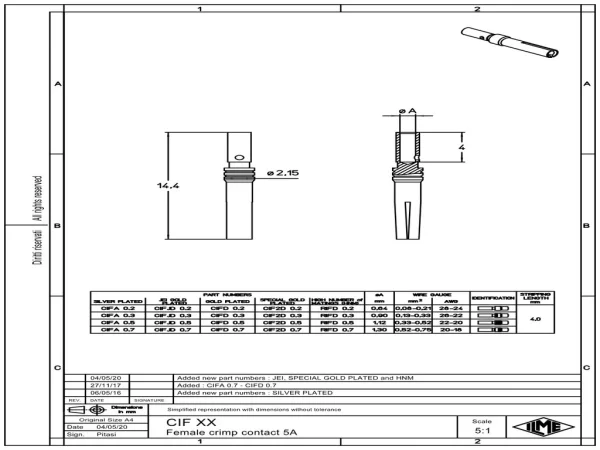

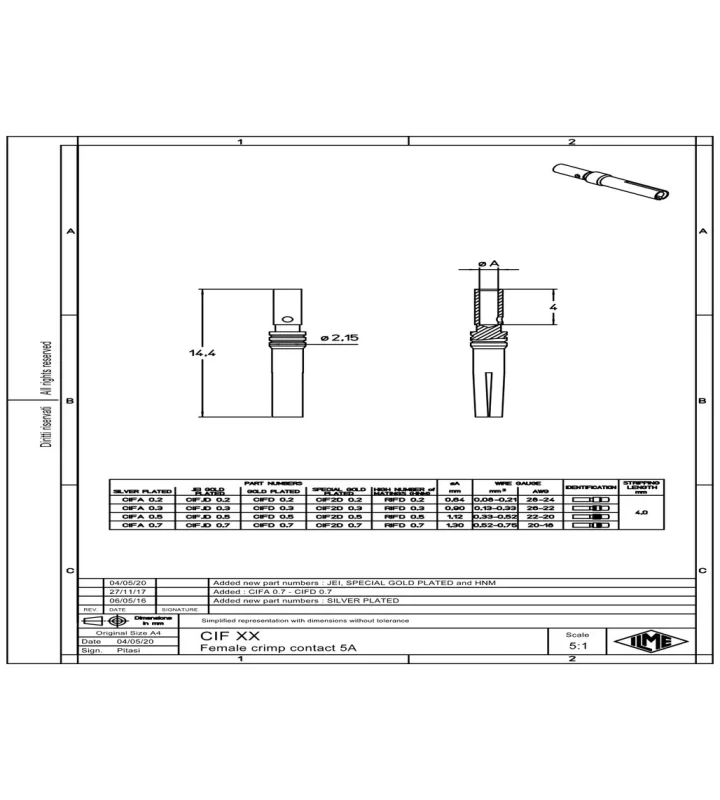

female contact, 0,08-0,21mm², gold 2µm, crimp, 5A, series CI
CIF2D 0.2
Specificaties
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Female |
| Min. Cross section | 0.08 mm² |
| Max. Cross section | 0.21 mm² |
| AWG size | 28 - 24 |
| Diameter male contact | 1 mm |
| Wire strip length | 4 mm |
Electrical parameters
| Max. rated current | 5 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Gold |
