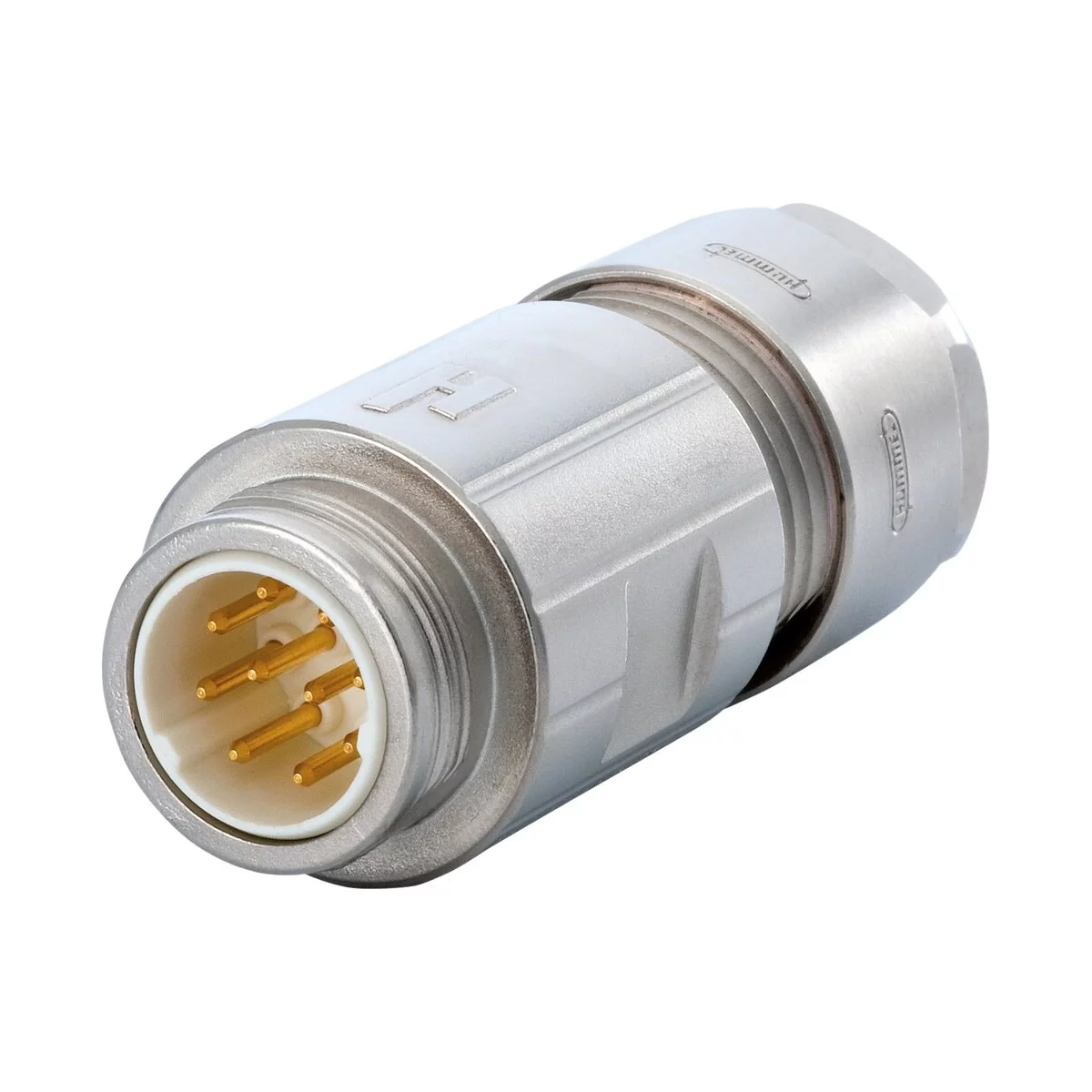

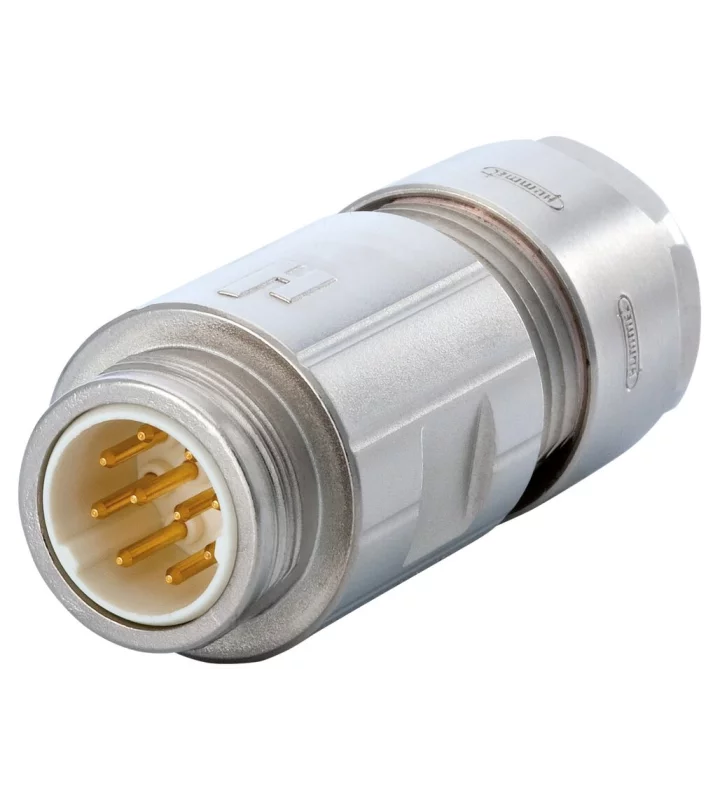

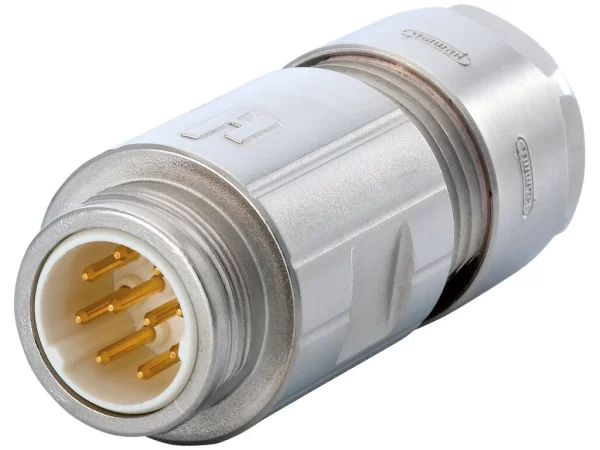

Straight Connector, Male Thread
7.820.500.000
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M16 |
|---|---|
| Gender of required insert | Male/Female |
| Connector diameter | 19.7 mm |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw/Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Cable diameter | 8 - 11 mm |
Material
| Housing material | Copper-Zinc alloy, Die cast |
|---|---|
| Housing plating | Nickel plated |
Varianten
| Art. number | Cable diameter (mm) | Cable diameter |
|---|---|---|
| 7.820.300.000 | 3 - 6 mm | 3 - 6 mm |
| 7.820.400.000 | 5 - 9 mm | 5 - 9 mm |
