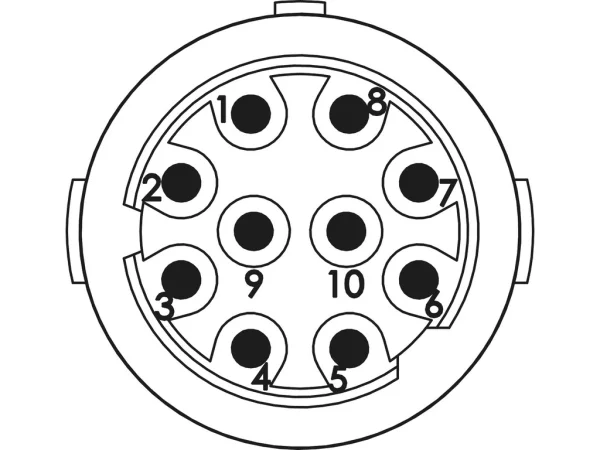

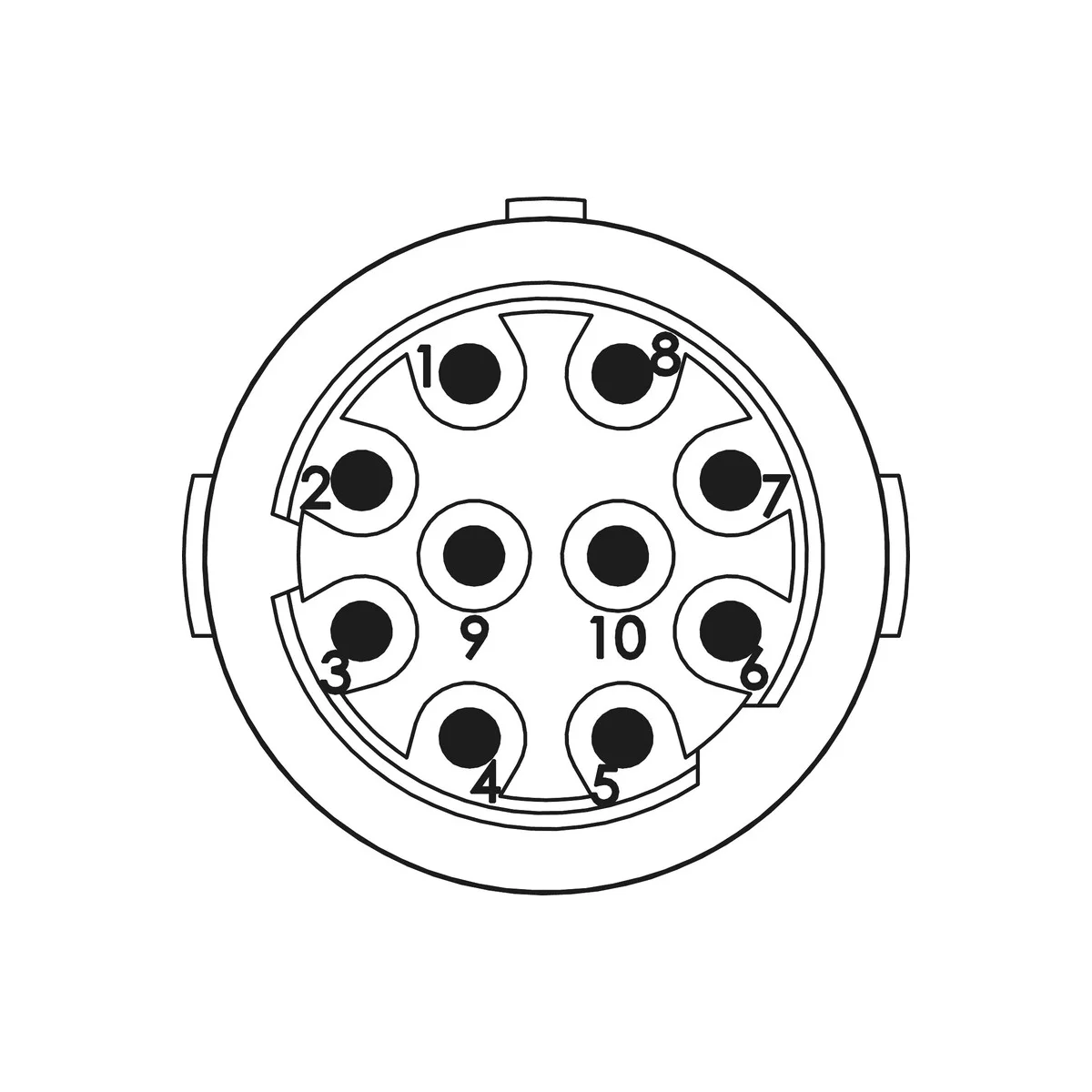

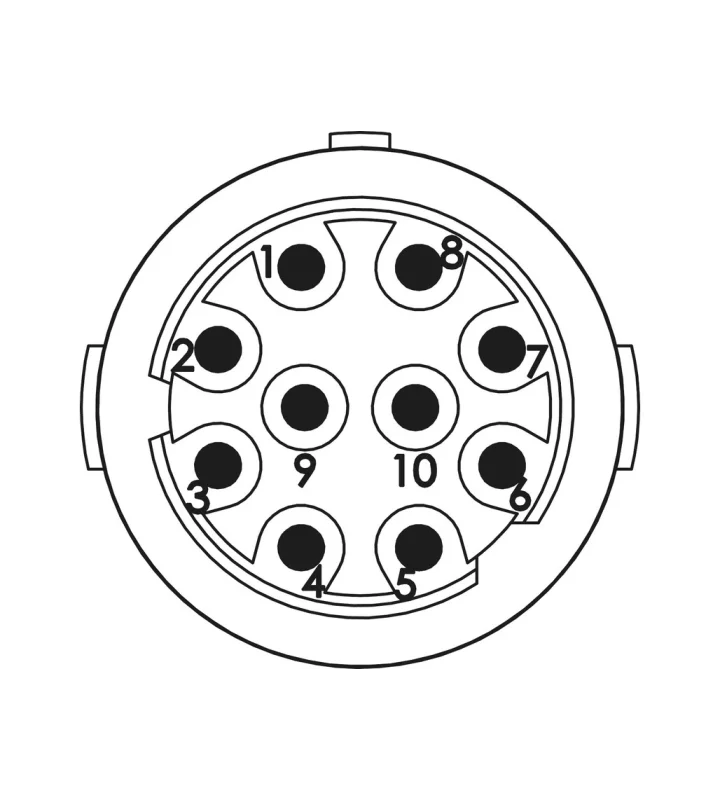

Inserts 10-pole
Sockets
7.001.910.108
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M16 |
|---|---|
| Number of contacts | 10 |
| Gender | Female |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking | Twilock |
| Protection degree | IP67/IP69K |
| Terminal type | Dip-solder |
| Included contacts | dip solder length 10 mm |
| Contact diameter | 1 mm |
Electrical Parameters
| Nominal voltage (degree of pollution 3) | 160 V~ |
|---|---|
| Test voltage | 1500 V~ |
| Nominal current | 8 A |
| Insulation resistance | > 10⁶ |
| Max. contact resistance | 3 mΩ |
Material
| Material | Thermoplastic Polyamid PA 6/Fire protection class V-0 |
|---|
