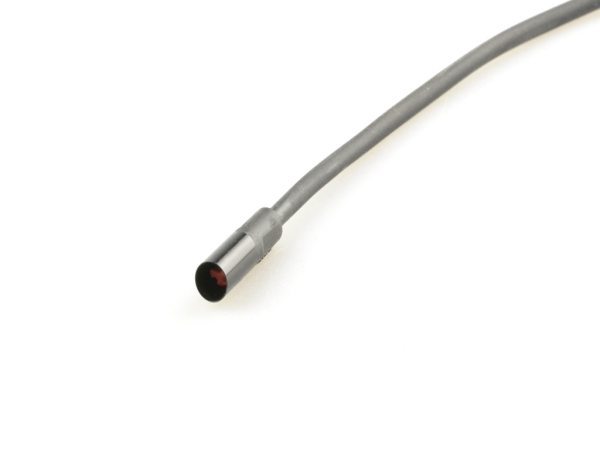

Micro M male cable connector
Z205MG P 00 BT 1000
Vraag een offerte aan Favoriet toevoegenSpecificaties
General Characteristics
| Color | Red |
|---|---|
| Mating cycles | 50 Mating times |
| IP Protection | IP67 |
| Remark | Other cable length/type on request |

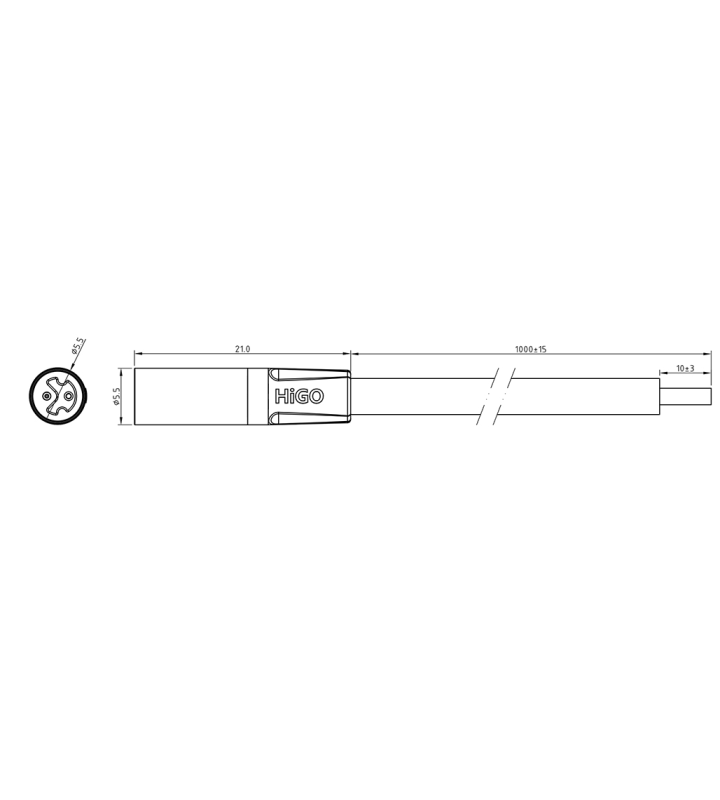

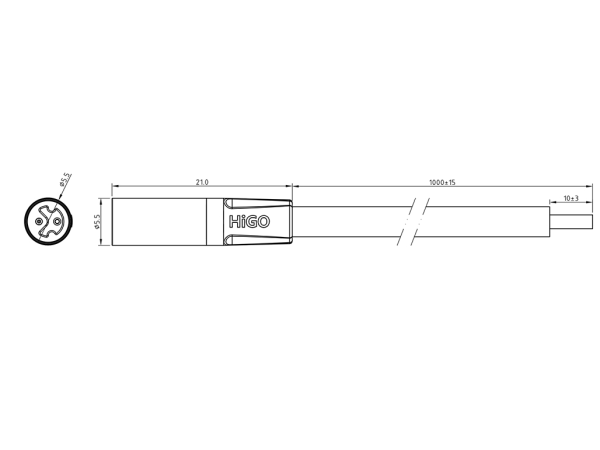

| Connector diameter | 5.5 mm |
| Wire section | 2 x 0,13 mm² |
| Cable Length | 1000 mm |
| Cable diameter | 3.3 mm |
| Locking | Push-on (no locking) |
| Fitting length | 30 mm |
| Gender | Male |
| Lower temperature | -25 °C |
| Number of contacts | 2 |
| Upper temperature | 80 °C |
Electrical Parameters
| Max. contact resistance | â¤10 MΩ |
|---|---|
| Max. insulation resistance | â¥20 MΩ |
| Rated voltage | 48 V AC / 60 V DC |
| Rated current | 2 A |
Material
| Contact plating | Gold over Nickel |
|---|---|
| Insulation wire | PVC |
| Material jacket | TPU |
| Material of contact | Phosphor Bronze |
Product finder selection criteria
| Gender | Male |
|---|---|
| Locking | Push-on (no locking) |
| Number of contacts | 2 |
| Rated current | â¤5 A |
| Nominal voltage | â¤200 V |
| IP Protection | IP67 |
